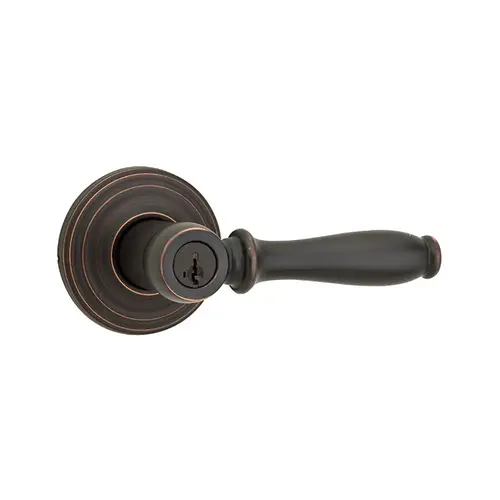

Kwikset 740ADL-11P-SMT-6AL-RCSClick To Copy Ashfield Keyed Entry Lever Venetian Bronze

Ashfield LeverKwikset Signature Series

Stylish and timeless, Ashfield’s vintage inspired design brings together time-honored country traditions.

Features:

• Reversible Lever Fits Both Left and Right Handed Doors

• Concealed Screws

• ANSI BHMA Grade 2 Certified

Specifications: Door Prep:

• Cross Bore 2-1/8"
• Edge bore 1"

Backset:

• Adjustable 2-3/8" or 2-3/4"
• UL functions 2-3/4" standard or 2-3/8" optional

Door Thickness:

• 1-3/8" - 1-3/4" Doors standard
• 2-1/4" doors optional on 720 and 740 functions only

Cylinder:

• SmartKey Security™

Faceplates:

• 1" x 2-1/4" Specify round corner, square corner or drive-in.

Strikes:

• 2-1/4" Full lip. Specify round corner or square corner.
• Other options available.

Bolt:

• 1/2" Throw

Door Handing:

• Reversible for both Left and Right handed doors.
• Specify handing only with Inactive and Interior Pack levers.

ANSI/BHMA:

• Grade 2 Certified

ADA:

• Functions 720 and 788 satisfy section 4. 13. 9 ADA requirement.

UL:

• Meets UL 3 hour fire rating for 725, 735, 745, 746, 755.
• Optional UL 1/3 hour fire rating for all functions.

Functions: Passage/Hall/Closet:

• Both levers always free

Privacy/Bed/Bath:

• Both levers locked or unlocked by turnbutton inside. Outside lever unlocked by emergency key

Keyed Entry Lever:

• Both sides locked or unlocked by key outside or turnbutton inside

Half Dummy Trim, Surface Mounted:

• For doors where only a pull is required. No operation

Finishes:

• Venetian Bronze - 11P

• Satin Nickel - 15

• Antique Nickel - 15A

• Polished Chrome - 26

• Matte Black - 514
