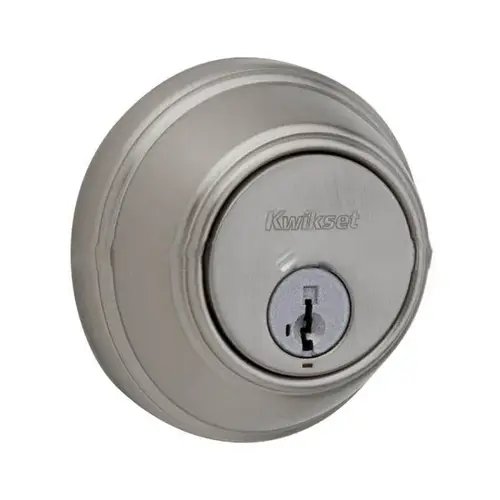

Kwikset 816-15-SMT-6AL-RCSClick To Copy 816 Key Control Deadbolt Satin Nickel

816 Key Control Deadbolt SmartKey with 6 Way Adjustable Latch and Round Corner Strike in Satin Nickel
816 DeadboltKey Control™

The smart alternative to master keying
Re-keying & managing a traditional master key system is labor intensive, time consuming & costly. With the first & only two cylinder Key Control Deadbolt, either cylinder can be re-keyed in seconds, without removing the lock from the door.

Key Control:

• Two separate cylinders, Tenant & Property Manager,allow for more tenant key cuts than a traditionalmaster key system

• New proprietary keyway adds security - the tenant key will never fit into the Property Manager Cylinder

• The Property Manager Cylinder is concealed when not in use to avoid tenant confusion

Increased Efficiency:

• Re-key the lock without removing from the door

• Save time & money by re-keying yourself

• Maintain key control throughout tenant and employee turnover

Specifications: StandardDoor Prep:

• Cross Bore 2-1/8"
• Edge Bore 1"
• Latch Face 1" x 2-1/4"

Door Thickness:

• 1 3/4"

Cylinder:

• 2 SmartKey Security™ cylinders: 1 standard Kwikset for users, 1 unique patented keyway for 1-Key Control

Faceplate:

• 1" x 2-1/4"

Strike:

• 1 1/4" x 3-5/8"

Bolt:

• 1" throw

ANSI/BHMA:

• A156.5 Grade 2

ADA:

• Interior turn piece meets 4.13.9 ADA

UL:

• Meets UL 3 hour fire rating for UL function.
• UL Ref# R10923

Functions: 816 Key Control Deadbolt:

• Deadbolt operated by key outside and thumb turn inside.

817 UL Key Control Deadbolt:

• Deadbolt operated by key outside and thumb turn inside.

Finishes:

• 3 - Polished Brass

• 5 - Antique Brass

• 11P - Venetian Bronze

• 15 - Satin Nickel

• 26D - Brushed Chrome

This product contains 2 cylinders per lock and is typically keyed alike in quantities of 1.
