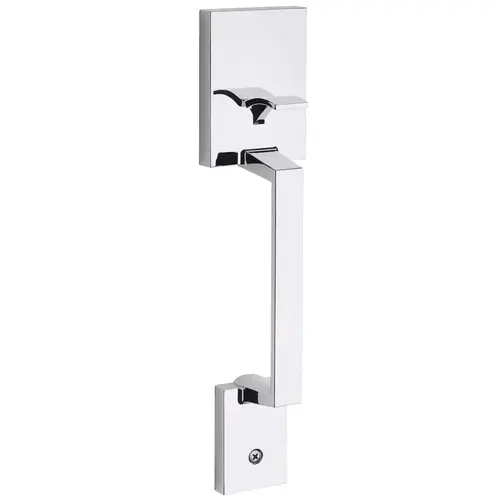

Kwikset 898AMD-26Click To Copy Amador Handle Only, No Deadbolt with RCAL Latch and RCS Strike Bright Chrome Finish

Amador HandlesetFeaturing SmartKey®

Amador has a refined, structural look with its simplistic modern design. Priced affordably, this handleset offers acheivable style while maintaining superior security.

Features:

• Featuring SmartKey Security™ - protecting against advanced break-in techniques.

• ANSI/BHMA Grade 3 Certified Security & Quality

• Lifetime Mechanical Warranty

Specifications: Door Prep:

• Deadbolt:
  • 2-1/8" or 1-1/2" Edge Bore 1"
  • Latch Face 1" x 2-1/4"
• Handle:
  • Cross Bore 2-1/8"
  • Edge Bore 1"

Backset:

• Deadbolt:
  • Adjustable to 2-3/8" or 2-3/4"
• Handle:
  • Adjustable to 2-3/8" or 2-3/4"

Door Thickness:

• 1-3/4" doors standard
• 2-1/4" doors optional
• Not designed for use on 1-3/8" doors

Cylinder:

• SmartKey Security™

Faceplates:

• 1" x 2-1/4"
• Specify round corner, square corner or drive-in

Strikes:

• Deadbolt:
  • 1" x 2-1/4". Specify round corner or square corner.
  • Other options available.
• Handle:
  • 2-1/4" full lip. Specify round corner or square corner.
  • Other options available.

Bolt:

• Deadbolt:
  • 1" throw
• Handle:
  • 1/2" throw

Door Handing:

• Reversible for right or left-hand doors

ANSI/BHMA:

• Deadbolt is Grade 3 Certified

ADA:

• N/A

UL:

• Optional UL 1/3 hour fire rating for all functions except 699 & 502

Finishes:

• 11P - Venetian Bronze*

• 15 - Satin Nickel*

• 514 - Matte Black*

• 26 - Polished Chrome

• 26D - Satin Chrome

• *Microban
