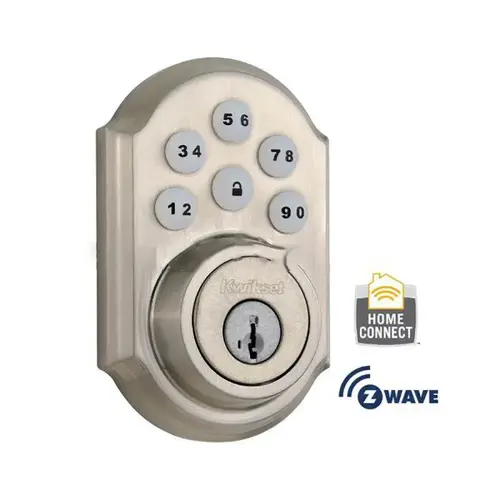

Kwikset 910-TRL-ZW-15-SMT-RCAL-RCSClick To Copy SmartCode 910 Touchpad Electronic Deadbolt Satin Nickel

SmartCode 910 Traditional Touchpad Electronic Deadbolt SmartKey with Home Connect, Round Corner Adjustable Latch and Round Corner Strike in Satin Nickel
910 SmartCode™ DeadboltFeaturing Zigbee HA1.2

Single Cylinder Electronic Deadbolt

Convenience:

• Backlit keypad with one-touch locking

• Motorized locking mechanism enables true remote locking & unlocking

• Tapered deadbolt design permits misaligned doors to lock & unlock with ease

• SmartKey® easy re-key backup keyway

• Interior LED status indicator—Locked/Unlocked status & low battery status

• Auto re-lock feature—locks door 30-seconds after unlocking

Security:

• 30 user access code capacity, 4–8 digit code length

• 128-bit Advanced Encryption Standard (AES) communication

• Meets BHMA Grade 2 deadbolt operational and security standards

• Drill and pick resistant backup keyway with BumpGuard™ protection

• Independent, local user authentication – No controller connectivity required

• User settings stored on lock memory – settings remain even in case of a power outage

Customizable Features:

• Auto re-lock 30-seconds after unlocking - ON/OFF

• Interior LED locked/unlocked status - ON/OFF

• Audible feedback - ON/OFF

Electrical Specifications: Input Power:

• 6V
• (4 x AA alkaline batteries)

Mechanical Specifications: Door Prep:

• 2 1/8" diameter face hole & 1" diameter latch hole

Backset:

• Adjustable 2 3/8" or 2 3/4"

Door Thickness:

• 1 3/8" – 2" automatic adjustment

Faceplates:

• 1" x 2 1/4" round corner standard

Strikes:

• Round corner strike 2 3/4" x 2 1/8"

Latch:

• Round corner adjustable 2 3/8" x 2 3/4"

Bolt:

• 1" throw, steel deadbolt

Door Handing:

• Reversible

Cylinder:

• SmartKey Security™

Environmental Specifications: Temperature Range:

• Exterior: -40°F to 150°F
• Interior: 32°F to 140°F

Humidity:

• Exterior: 100% condensing
• Interior: 99% non-condensing

HA 1.2 Enabled Lock Features:

• Monitor lock status
• (locked/unlocked)

• Remote locking and unlocking

• Lock jam notification

HA1.2 Enabled Lock Management Features: Over the Air Updates:

• ZigBee daughter card and Lock mainboard updates

Multiple user type settings:

• 24/7 user codes
• Time limited user codes (up to 7 schedules per user)
• One-time user codes

Remote Lock Configuration:

• Add/Remove users
• Status LED On/Off
• AutoLock (time is user configurable)
• Sound on/off

• Remote and local reset to factory default settings

• Remote power status information

• Remotely disable/enable local programming interface

• Tamper detection - Alarm if the device senses lock disassembly

• Audio/Visual enrollment success indicator

• Invalid code entry alarm with lockout state duration
• (user configurable)

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
