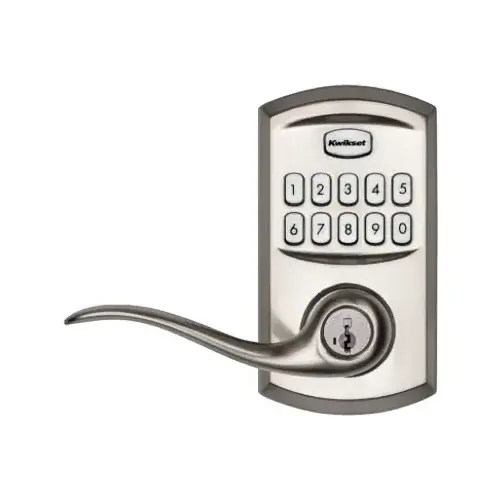

Kwikset 917TNL15SMTCPRC 911TNL-15 SMT Deadbolt Lever, Metal, Satin Nickel, 1-3/8 to 1-3/4 in Thick Door
Item #: 917TNL15SMTCPRC by Kwikset
UPC #: 883351731058
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Lock your door with the touch of a button
- Customizable access codes for increased security
- Back-lit keypad for increased visibility
- Customized automatic door locking after 30 sec for peace of mind
- Installs in minutes with just a screwdriver no hard wiring needed
- Featuring Smartkey security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- Smartkey security™ is compatible with Kwikset keyway
- SmartKey cylinders feature a stainless steel side locking bar, racks and pins for increased strength and security
- Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin and tumbler locks
Finish
Satin Nickel
Warranty
1 year limited
Pack Size
1
Manufacturer Warranty
Lifetime Mechanical-Finish, 1 Year Electronics
Assembled Depth (in.)
6
Assembled Height (in.)
5.16
Assembled Width (in.)
3.09
Backset size (in.)
Adjustable
Certifications and Listings
ANSI Certified
Commercial/Residential
Residential
Door Handing
Universal
Door Locks & Knobs Product Type
Electronic Keypad
General Material
Metal
Hardware Finish Family
Nickel
Included
Batteries Included, Hardware, Installation Instructions, Mounting Hardware
Maximum User Codes
30
Required Battery Type
9-Volt
Security/ANSI Grade
AAA
Lock Type
Keyed, Keyed Entry, Keypad, Push Button
UNSPSC
46171500
Power Source
Battery
Door Thickness
1-3/8 to 1-3/4"
Nomenclature
917TNL-15 ENTRY LOCK SMRTCDESN
Material
Metal
Application
For interior garage/side door, small/home office and utility/storage room
Height
8.86
Length
5.32
Width
5.79
Hazardous Material
No
ECCN
EAR99
Country Origin Code
MX
Latch Type
6-Way Adjustable
Keyway type
KW1
Security Grade
AAA
Keypad Included
Yes
Number of User Codes
30
Projection
2.6900
Grade
ANSI/BHMA Grade 2
Lever Length
4.2200
Backset
RCALFD-Round Corner Adjustable UL
Keyway
Kwikset KW1
Function
917-SmartCode Lever
Strike
RCS-Round Corner Strike
Bore Size
2.1250
Cylinder Type
SmartKey Security
Finish Description
Satin Nickel
Product Height
Inner Trim: 5-3/8"; Outer Trim: 5-5/32"
Product Length
Inner Trim: 5-5/8"; Outer Trim: 5-19/32"
Included Components
Latch; Strike; Keys; Exterior Assembly; SmartKey Tool; Interior Assembly; Fasteners; 9V Battery; Spindle; Levers; Allen Wrench
Lever Style
TNL-Tustin
Keyblank Grouping
KWIK-KW1-5-1
Rose/Escutcheon Trim
Arch Rose
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Product Type
Touchscreen Lock
Series
SmartCode Series Clear Pack
Box Length
3.5000
Box Width
6.0000
Box Height
10.0000
Operating Temperature
Exterior: -40 to 150°F; Interior: 32 to 140°F
Color Code
619/US15
Hand
Reversible
Latch Throw
1/2 Inch
Product Width
Inner Trim: 2-29/32"; Outer Trim: 3-3/32"
Strike Type
Full-Lip
ADA Compliant
YES
Corner Type
Round
Finish Family
Satin Nickel
Standards
BHMA Class AAA; UL Fire Rating
Front Size
1" x 2-1/4"
Features
Traditional Styling; Easy Re-Keying with SmartKey Security; 3 year Battery Life using 9V Up to 30 user Codes; Home Offices; Utility Rooms; Side Doors; Interior Garage Doors; Storage Closets; Rental Properties
Bolt Backset
2-3/8" or 2-3/4"
Manufacturer Parent
Spectrum
Lever Length-Inches
4.22 Inch
Door Edge Bore
1 Inch
Latchbolt Type
Adjustable Latch; Dead Latch
Sub-Series
RL_Electronic_Locks_kwikset_5
Strike Size
2-1/4 Inch
Collection
Tustin
Package Height
8.86"
Package Length
5.32"
Package Width
5.79"
Item Weight
4.19 lbs
Product Overview
ENTRY LOCK SMARTCDE SAT NICKEL
The SmartCode touchpad electronic deadbolt lever is a one-touch locking motorized deadbolt. With your personalized code, you can enter your home with the convenience of keyless entry and the back-lit keypad provides increased visibility. SmartCode is easy to install, program and use and operates on 4 AA batteries. It also features Smartkey security as the back-up keyway.
