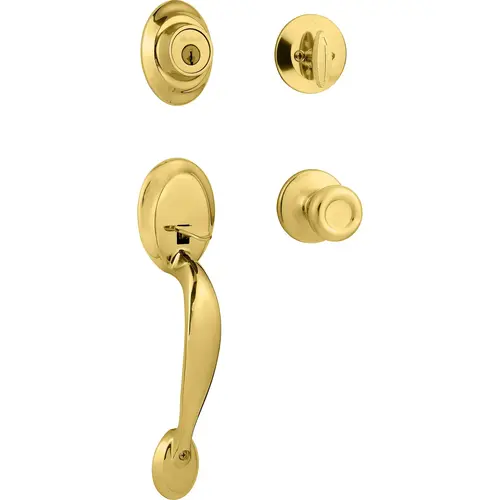

Kwikset 96870-091 687DAxT 3 SMT CP Dakota Handleset with Tylo - Polished Brass
Item #: 96870-091 by Kwikset
UPC #: 883351263870
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Easily installs in minutes with just a screwdriver; Lifetime mechanical and finish warranty
Finish
Polished Brass
Material
Metal
Style
Dakota/Tylo
Maximum Door Thickness
1-3/4"
Cylinder Type
5-Pin
Faceplate Material
Brass
Minimum Door Thickness
1-3/8"
Adjustable Backset
Yes
Packaging Type
Clamshell
Indoor or Outdoor
Outdoor
Commercial or Residential
Commercial and Residential
Compatible Key Numbers
KW1
Defective Code
A
Door Direction
Left or Right Handed
Drill Resistant
No
Each Weight
4.500 LB
Hazardous Material
No
Returnable
Yes
Security Grade
3
Sub Brand
SmartKey
Trim Rings
Yes
Velocity
X
Product Type
Entry Handleset
Grip Center to Center
8-13/32"
Faceplate Size
1 x 2-1/4"
Strike Type
Full Lip Round Corner
Door Handing
Reversible
Strike Size
1 x 2-1/4 in Deadbolt 2-1/4 in Latchbolt
Backset Size
2-3/8 x 2-3/4"
Keyway type
KW1
Number of Cylinders
1
Cross Bore Diameter
2-1/8"
Interior Handle Type
Knob
Nomenclature
687DAXT3SMTCP DAKOTA HSET BBRS
Backset Type
Universal
Edge Bore Diameter
1"
Deadbolt Latch Throw
1"
Re-Key Technology
Smartkey
Plainbolt Latch Throw
1/2"
Dimensions
17-3/16 in H
Center to Center
5-1/2"
Door Thickness
1-3/4"
Height
21.80
Length
5.50
Width
8.00
ECCN
EAR99
Country Origin Code
CN
Keyway
KW1 5-Pin SmartKey
Function
Single Cylinder
Collection
Dakota
Package Height
5.5"
Package Length
21"
Package Width
8.13"
Item Weight
5.08 lbs
Product Overview
DAKOTA/TYLO HANDLE SMT BRT BRS
Sectional handleset with single cylinder deadbolt. Latchbolt operated by thumbpiece outside and grip inside. Deadbolt operated by key outside and thumbturn inside. Security handlesets feature full 1" solid core throwbolt, all metal mechanisms, anti-pry shield and 5-pin system. DOOR PREP: Deadbolt - 2-1/8" or 1-1/2" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. Handle - 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: Deadbolt - adjustable 2-3/8" - 2-3/4" optional, Handle - dual 2-3/8" - 2-3/4" plainlatch standard. DOOR THICKNESS: 1-3/4" doors. CYLINDER: 5-pin. FACEPLATES: 1" x 2-1/4" round corner. STRIKES: Deadbolt - 1" x 2-1/4" round corner. Handle - 2-1/4" full lip round corner. BOLT: Deadbolt - 1" throw. Handle - 1/2" throw plainlatch. HANDING: Reversible for right or left hand doors. SMT - SmartKey, re-key the lock in less than ten seconds.
