Features
Projection
1.0310
Finish
Venetian Bronze
Grade
ANSI/BHMA Grade 1
Application
For Use on Exterior Doors Where Keyed Entry and Security is Needed
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Round Corner
Color Code
11P
Keyway
Kwikset KW1
Function
985-Double Cylinder
Door Thickness
1-3/8" to 1-3/4"
Strike
RCS-Round Corner Strike
Bore Size
2.1250
Cylinder Type
SMT SmartKey
Finish Description
Venetian Bronze
ADA Compliant
No
Included Components
Latch; Strike; Keys; Screws; SmartKey® tool; Deadbolt
Keyblank Grouping
KWIK-KW1-5-1
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Standards
ANSI/BHMA
Features
Deadbolt Operated by Key on Both Sides; Easily Installs in Minutes With Just a Screwdriver; Comes With 2 Keys; Featuring Smartkey Security™
Product Type
Auxiliary Lock
Series
Signature Series
Box Length
4.6700
Box Width
3.9200
Box Height
3.0700
Warranty
Lifetime Limited Mechanical/Finish
Finish Family
Dark Bronze
Function Family
Double Cylinder Deadbolt
Manufacturer Parent
Spectrum
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.07x3.92x4.67
Sub-Series
985-11P-SMT-CP-K4
Product Overview

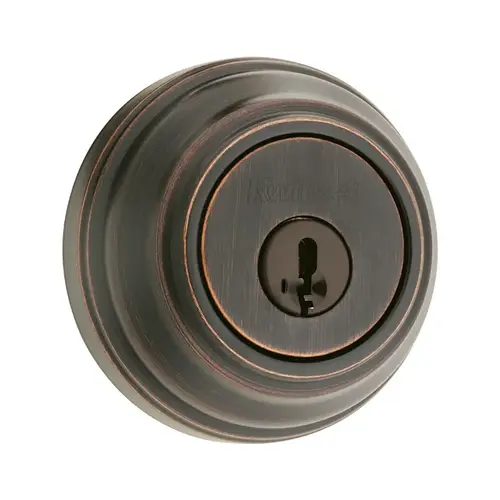

980 DeadboltFeaturing SmartKey®
Kwikset’s timeless 980 deadbolt is both tough and attractive. With a variety of finishes, this deadbolt can be paired with an assortment of knobs, levers or handles.
Features:- Featuring SmartKey Security™
- ANSI/BHMA Grade A - Highest Residential Security, Durability and Finish
- Easy to Install
- 980, 985:
- Crossbore 2 1/8" or 1 1/2"
- Edge Bore 1"
- 982, 984:
- Crossbore 2 1/8"
- Edge Bore 1"
- Adjustable 2 3/8" or 2 3/4"
- 1 3/8" - 1 3/4" Doors standard
- 1 7/8" - 2 1/4" optional
- SmartKey Security™ or Pin & Tumbler
- 1" x 2 1/4" Specify round corner, square corner or drive-in
- Standard: Grade 2, 1 1/4" x 3 5/8" Specify round corner or square corner. For Grade 1 order 5278 Strike option and Ultra Strike Door Jamb Brace. Other options available.
- 1" Throw
- Reversible for right or left-hand doors
- Grade A
- Interior turn pieces are in compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA).
- Meets UL 3 hour fire rating for 982 and 984 Optional UL* 1/3 hour fire rating for all functions
- Lifetime Mechanical andLifetime Finish
- Deadbolt operated by key outside and thumbturn inside.
- Deadbolt operated by key both sides.
- Polished Brass - L03/3
- Antique Brass - 5
- Venetian Bronze - 11P
- Satin Nickle - 15
- Matte Black - 514
