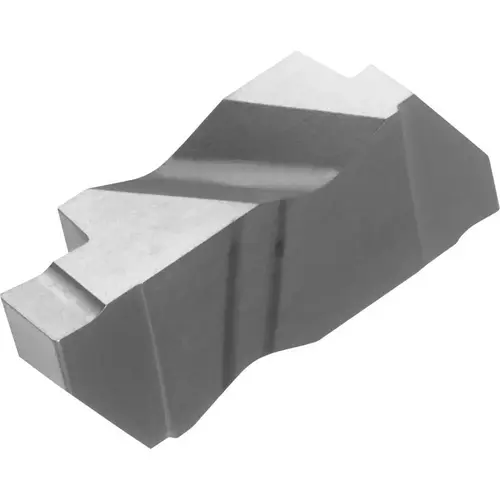

Kyocera 8850653 Grooving Insert: KCGP2058 PR1215, Solid Carbide Megacoat
Item #: 8850653 by Kyocera SGS Precision Tools
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
ANSI Code
KCGP2058RPR1215
Standards
ANSI
Insert Material
Solid Carbide
Series
KCGP
Coating Process
PVD
Coating/Finish
MEGACOAT
Corner Radius (Decimal Inch)
0.0080
Manufacturers Catalog Number
KCGP2058R
Material Grade
Micrograin
Overall Length (Decimal Inch)
0.5400
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Vendor Drop Ship
Y
Cutting Width (Decimal Inch)
0.0580
Insert Holding Method
Clamp
Insert Thickness (Decimal Inch)
0.1500
Lead Angle
3
Maximum Depth of Cut (Decimal Inch)
0.1100
Multi-use Tool
No
Rake
Positive
Secondary Workpiece Material
Stainless Steel
Insert Hand
Right Hand
Rake Angle
3.00
Secondary Workpiece Material Code
M
Insert Style
KCGP
Insert Size Code
2058
Included Angle Degree
55
Cutting Height (Decimal Inch)
0.2190
Manufacturer Grade
PR1215
Maximum Depth Of Cut Range (Decimal Inch)
0.1000 to 0.1500
Iso Code
KCGP2058RPR1215
Product Overview
Grooving Insert: KCGP2058 PR1215, Solid Carbide Megacoat, Right Hand, 0.058" Cutting Width, 0.11" Max Depth, Series KCGP
