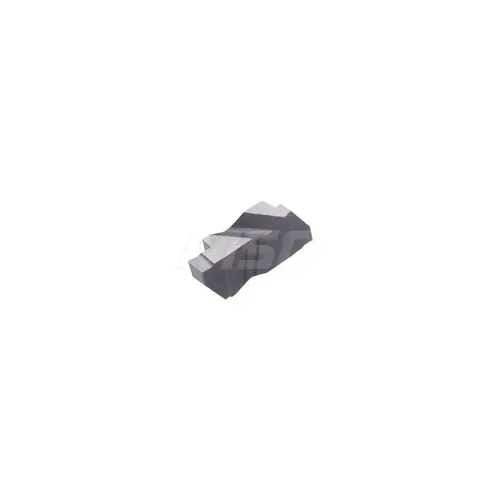

Kyocera 8850659-XCP10 Grooving Insert: KCGP3072 PR1215, Solid Carbide - pack of 10
Item #: 8850659-XCP10 by Kyocera SGS Precision Tools
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
ANSI Code
KCGP3072RPR1215
Standards
ANSI
Insert Material
Carbide
Series
KCGP
Coating Process
PVD
Coating/Finish
MEGACOAT
Corner Radius (Decimal Inch)
0.0080
Manufacturers Catalog Number
KCGP3072R
Material Grade
Micrograin
Overall Length (Decimal Inch)
0.8100in
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Cutting Width (Decimal Inch)
0.0720in
Insert Holding Method
Clamp
Insert Thickness (Decimal Inch)
0.1950
Lead Angle
3degree
Maximum Depth of Cut (Decimal Inch)
0.0940
Multi-use Tool
No
Rake
Positive
Secondary Workpiece Material
Stainless Steel
Insert Hand
Right Hand
Rake Angle
3.00
Secondary Workpiece Material Code
M
Insert Style
KCGP
Insert Size Code
3072
Included Angle Degree
55
Cutting Height (Decimal Inch)
0.3440
Manufacturer Grade
PR1215
Maximum Depth Of Cut Range (Decimal Inch)
0.0750 to 0.1000
Iso Code
KCGP3072RPR1215
Product Overview
Grooving Insert: KCGP3072 PR1215, Solid Carbide Megacoat, Right Hand, 0.072" Cutting Width, 0.094" Max Depth, Series KCGP
