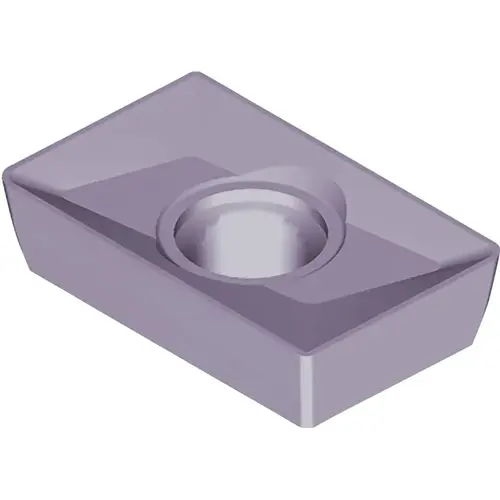

Milling Insert: XPMT090208PR1525, PR1525, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kyocera 8850717-XCP10 Milling Insert: XPMT090208PR1525, PR1525, Solid Carbide - pack of 10

Item #: 8850717-XCP10 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Material Application

Steel

ANSI Code

XPMT090208PR1525

Number of Cutting Edges

2

Standards

ANSI

Insert Material

Solid Carbide

Series

OTMM

Coating Process

PVD

Coating/Finish

MEGACOAT NANO

Corner Radius (Decimal Inch)

0.0312

Length (Decimal Inch - 4 Decimals)

0.3750

Length (Inch)

3/8

Manufacturers Catalog Number

XPMT090208

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.0940

Thickness (Inch)

3/32

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2500

Width (Inch)

1/4

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.3750

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.2500

Corner Radius (Inch)

1/32

Insert Shape

Parallelogram

Chip Breaker

Common

Secondary Workpiece Material Code

M

Insert Style

XPMT

Insert Size Code

090208

Hole Diameter (Decimal Inch)

0.1102

Relief Angle

11

Included Angle Degree

87

Inscribed Circle (Inch)

1/4

Manufacturer Grade

PR1525

Inscribed Circle Range (Decimal Inch)

0.2500 to 0.3000

Single or Double Sided Insert

Single

Cutter Series Compatibility

EM

Length Range (Decimal Inch)

0.3200 to 0.4000

Thickness Range (Decimal Inch)

0.0000 to 0.1000

Iso Code

XPMT090208

Product Overview
Milling Insert: XPMT090208PR1525, PR1525, Solid Carbide Coated, 0.094" Thick, 1/4" Wide
