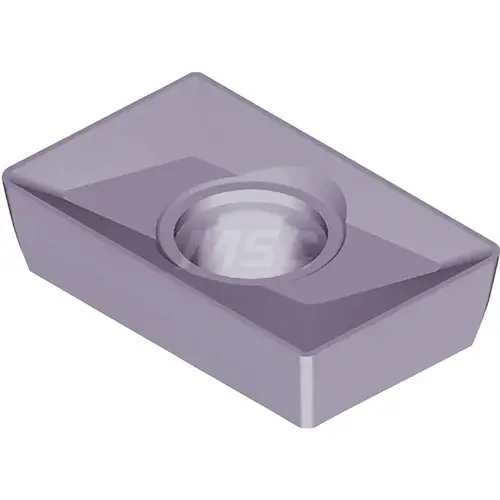

Milling Insert: XPMT15T304PR, PR1510, Solid Carbide MEGACOAT NANO

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kyocera 8861535 Milling Insert: XPMT15T304PR, PR1510, Solid Carbide MEGACOAT NANO

Item #: 8861535 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
In Stock

$22.64

/each
SAVE UP TO 2.26
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Material Application

Cast Iron

Length (mm)

15.42

ANSI Code

XPMT15T304PR1510

Number of Cutting Edges

2

Standards

ANSI

Thickness (mm)

3.97

Insert Material

Solid Carbide

Series

OTMM

Coating Process

PVD

Coating/Finish

MEGACOAT NANO

Corner Radius (Decimal Inch)

0.0156

Length (Decimal Inch - 4 Decimals)

0.6071

Manufacturers Catalog Number

XPMT15T304

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Thickness (Decimal Inch - 4 Decimals)

0.1563

Thickness (Inch)

5/32

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3748

Width (Inch)

3/8

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.6071

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Superalloys & Titanium

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.3748

Corner Radius (Inch)

1/64

Insert Shape

Parallelogram

Chip Breaker

Common

Secondary Workpiece Material Code

S

Insert Style

XPMT

Insert Size Code

15T304

Hole Diameter (Decimal Inch)

0.1575

Relief Angle

11.00

Included Angle Degree

87

Inscribed Circle (Inch)

3/8

Maximum Depth of Cut (mm)

15.00

Manufacturer Grade

PR1510

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Single or Double Sided Insert

Single

Cutter Series Compatibility

EM

Length Range (Decimal Inch)

0.6000 to 0.6500

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Iso Code

XPMT15T304

Product Overview
Milling Insert: XPMT15T304PR, PR1510, Solid Carbide Megacoat Nano, 3.97 mm Thick, 3/8 Wide
