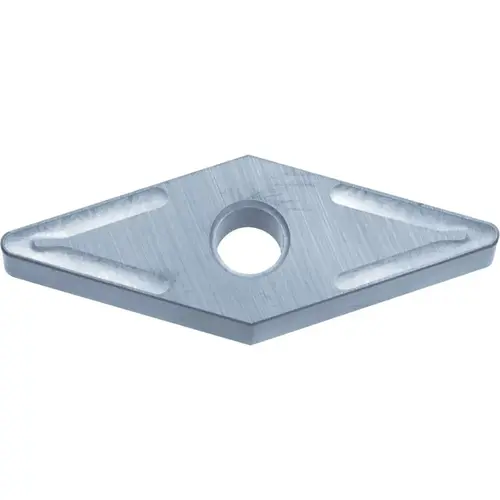

Kyocera 8863765-XCP10 Turning Insert: VNMX332 TN610 - pack of 10
Item #: 8863765-XCP10 by Kyocera SGS Precision Tools
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Number of Cutting Edges
4
Included Angle
35degree
Insert Material
Cermet
Series
ISOI
Coating Process
Uncoated
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0313
Manufacturers Catalog Number
8863765
Material Grade
P01
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.3750in
Width (Inch)
3/8in
Coating Classification
Uncoated
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
1.3080
Insert Thickness (Decimal Inch)
0.1875
Insert Thickness (Inch)
3/16
Maximum Depth of Cut (Decimal Inch)
0.4360
Multi-use Tool
Yes
Rake
Negative
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/32
Insert Shape
Diamond 35
Clearance Code
N
Full Radius
No
Insert Shape Code
V
Insert Style
VNMX
Insert Size Code
332
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1500
Relief Angle
0
Inscribed Circle (Inch)
3/8
Multi-Use Application
Copying
Manufacturer Grade
TN610
Length Range (Decimal Inch)
0.7000 - 10.0000
Iso Code
VNMX332
Product Overview
Turning Insert: VNMX332 TN610 Uncoated, Neutral, 3/8" Inscribed Circle, 0.0315" Corner Radius, 35 degree Diamond, Series HYBCERM
