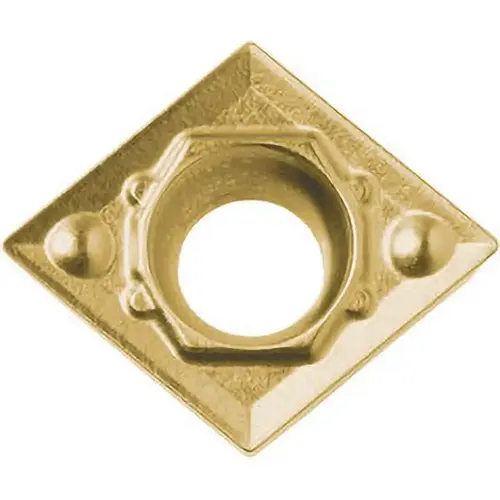

Turning Insert: CCMT2151HQ CA515, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kyocera TAB00431-XCP10 Turning Insert: CCMT2151HQ CA515, Solid Carbide - pack of 10

Item #: TAB00431-XCP10 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$176.05

/package
SAVE UP TO 17.61
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Size Code

2151

Insert Hand

Neutral

Manufacturer Grade

CA515

Inscribed Circle (Inch)

1/4

Inscribed Circle (mm)

6.35

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.2500

Coating Process

CVD

Primary Workpiece Material

Steel

Insert Shape Code

C

Corner Radius (Decimal Inch)

0.0156

Insert Thickness (Inch)

3/32

Hole Diameter (Decimal Inch)

0.1102

Chip Breaker

HQ

Multi-Use Application

Boring

Length Range (Decimal Inch)

0.0000 - 0.3000

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

M

Coating Classification

CVD

ISO Size Code

060204

Wiper Edge

No

Insert Size Code

2151

Included Angle

80

Number of Cutting Edges

2

Series

ISOI

Hole Diameter (Mm) ( - 0 Decimals)

2.79

Insert Shape

C - Diamond (Rhombic) 80-Deg

Chip Breaker Operation

Finishing

Primary Workpiece Material Code

P

Width (Inch)

1/4

Insert Material

Carbide

Insert Thickness

2.38

Insert Thickness (Decimal Inch)

0.0938

Side Clearance

Positive

Corner Radius (mm)

0.40

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.0833

ISO Insert Code

CCMT060204

Iso Code

CCMT060204HQ

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Insert Length (Inch)

1/4

Width (Decimal Inch - 4 Decimals)

0.2500

Relief Angle

7

Cutting Edge Style

Honed

Clearance Code

C

Rake

Positive

Material Grade

P01

ANSI Insert Code

CCMT2151

Insert Length (Decimal Inch)

0.2500

Insert Holding Method

Screw

Coating/Finish

TiCN

Rake Angle

15

UNSPSC Code

23242105

Corner Radius (Inch)

1/64

Insert Style

CCMT

Manufacturers Catalog Number

TAB00431

Product Overview
Turning Insert: CCMT2151HQ CA515, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 1/4" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series ISOI
