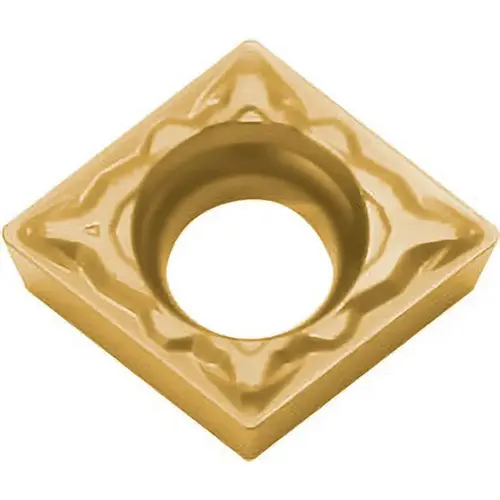

Kyocera TAB00507 Turning Insert: CCMT3251PP CA515, Solid Carbide TiCN

Item #: TAB00507 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$20.02

/each
SAVE UP TO 2.00
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Insert Thickness

3.97

Included Angle

80

Insert Material

Carbide

Series

ISOI

Side Clearance

Positive

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

TAB00507

Material Grade

P01

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

CVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3750

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.1250

Maximum Depth Of Cut (Fractional Inch)

1/8

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

C

Rake Angle

10

Full Radius

No

Insert Shape Code

C

Chip Breaker

PP

Insert Style

CCMT

Insert Size Code

3251

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Boring

Hole Diameter (Mm) ( - 0 Decimals)

4.39

Insert Length (Inch)

3/8

Chip Breaker Operation

Finishing

Manufacturer Grade

CA515

ISO Size Code

09T304

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.3000 - 0.4000

ANSI Size Code

3251

ISO Insert Code

CCMT09T304

Corner Radius (mm)

0.40

Iso Code

CCMT09T304PP

ANSI Insert Code

CCMT3251

Product Overview
Turning Insert: CCMT3251PP CA515, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series ISOI
