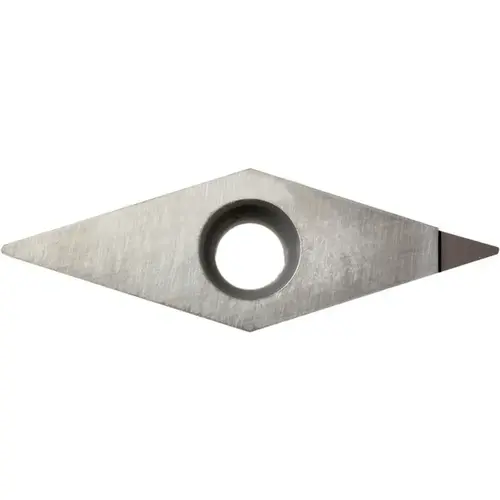

Kyocera TBR05641 Turning Insert: VBMT332SE KPD001, Polycrystalline Diamond Bright/Uncoated

Item #: TBR05641 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
In Stock

$70.67

/each
SAVE UP TO 7.07
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 13 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

1

Standards

ANSI

Insert Thickness

4.76

Included Angle

35degree

Insert Material

PCD

Series

ISOI

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

TBR05641

Material Grade

Super Micrograin

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750in

Width (Inch)

3/8in

Coating Classification

Uncoated

Insert Holding Method

Screw

Insert Length (Decimal Inch)

1.3080

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0787

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Superalloy

Tip Length (Decimal Inch)

0.0787

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/32

Insert Shape

Diamond 35

Clearance Code

B

Rake Angle

10

Full Radius

No

Insert Shape Code

V

Insert Style

VBMT

Insert Size Code

332

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

5

Inscribed Circle (Inch)

3/8

Multi-Use Application

Back Boring

Hole Diameter (Mm) ( - 0 Decimals)

4.39

Manufacturer Grade

KPD001

Single or Multi Tipped

Single Tipped

Length Range (Decimal Inch)

0.7000 - 10.0000

Corner Radius (mm)

0.79

Iso Code

VBMT160408SE

Product Overview
Turning Insert: VBMT332SE KPD001, Polycrystalline Diamond Uncoated, Neutral, 3/8" Inscribed Circle, 1/32" Corner Radius, 35 degree Diamond, Series ISOI
