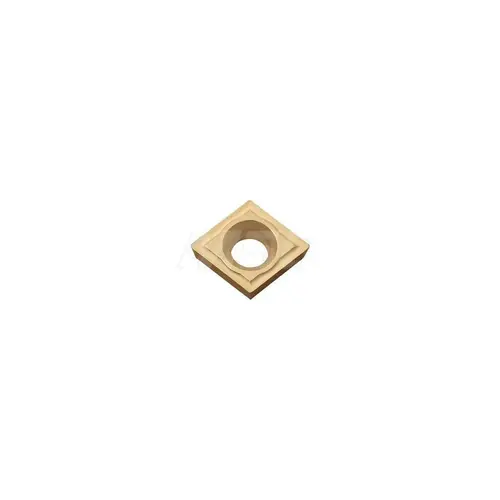

Turning Insert: CPMH321 CA5525, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kyocera TJR01380 Turning Insert: CPMH321 CA5525, Solid Carbide TiCN

Item #: TJR01380 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
In Stock

$19.22

/each
SAVE UP TO 1.92
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

2

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

ISOI

Side Clearance

Positive

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

TJR01380

Material Grade

P10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

CVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3750

Insert Thickness (Decimal Inch)

0.1250

Insert Thickness (Inch)

1/8

Maximum Depth of Cut (Decimal Inch)

0.1250

Maximum Depth Of Cut (Fractional Inch)

1/8

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

P

Full Radius

No

Insert Shape Code

C

Insert Style

CPMH

Insert Size Code

321

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1772

Relief Angle

11

Inscribed Circle (Inch)

3/8

Multi-Use Application

Boring

Insert Length (Inch)

3/8

Manufacturer Grade

CA5525

ISO Size Code

090304

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.3000 - 0.4000

ANSI Size Code

321

ISO Insert Code

CPMH090304

Iso Code

CPMH090304

ANSI Insert Code

CPMH321

Product Overview
Turning Insert: CPMH321 CA5525, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series CA5
