Turning Insert: CNMG432MS CA6515, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

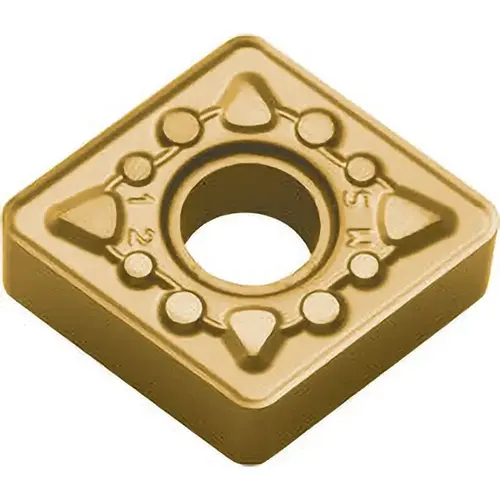

Kyocera TJU00922 Turning Insert: CNMG432MS CA6515, Solid Carbide TiCN

Item #: TJU00922 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
In Stock

$16.72

/each
SAVE UP TO 1.67
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 38 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Insert Thickness

4.76

Included Angle

80degree

Insert Material

Carbide

Series

ISOI

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

TJU00922

Material Grade

M10

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5000

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1667

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Superalloy

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Diamond 80

Clearance Code

N

Rake Angle

-19

Full Radius

No

Insert Shape Code

C

Chip Breaker

MS

Secondary Workpiece Material Code

S

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2032

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Boring

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Insert Length (Inch)

1-1/64

Manufacturer Grade

CA6515

Length Range (Decimal Inch)

0.5000 - 0.6000

Inscribed Circle (mm)

12.70

Corner Radius (mm)

0.79

Iso Code

CNMG120408MS

Product Overview
Turning Insert: CNMG432MS CA6515, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series ISOI
