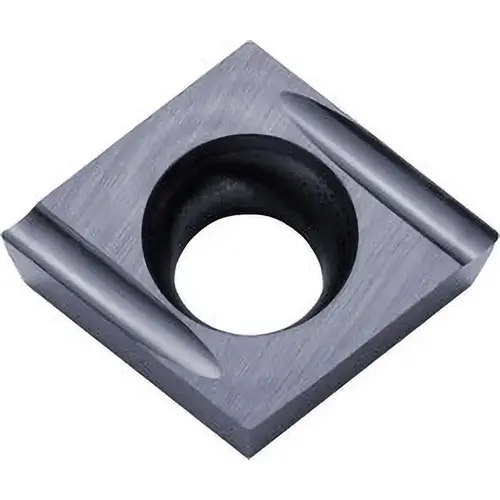

Kyocera TKE01325 Turning Insert: CCGT21505MFRU PR1225, Solid Carbide MEGACOAT
Item #: TKE01325 by Kyocera SGS Precision Tools
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Sharp
Number of Cutting Edges
2
Standards
ANSI
Included Angle
80degree
Insert Material
Carbide
Series
ISOI
Coating Process
PVD
Coating/Finish
MEGACOAT
Corner Radius (Decimal Inch)
0.0080
Manufacturers Catalog Number
TKE01325
Material Grade
P10
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.2500in
Width (Inch)
1/4in
Coating Classification
PVD
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.2500
Insert Thickness (Decimal Inch)
0.0938
Insert Thickness (Inch)
3/32
Maximum Depth of Cut (Decimal Inch)
0.0833
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Steel
Insert Hand
Right Hand
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.2500
Corner Radius (Inch)
1/128
Insert Shape
Diamond 80
Clearance Code
C
Rake Angle
30
Full Radius
No
Insert Shape Code
C
Chip Breaker
U
Secondary Workpiece Material Code
P
Insert Style
CCGT
Insert Size Code
21505
Tolerance Code
G
Hole Diameter (Decimal Inch)
0.1102
Relief Angle
7
Inscribed Circle (Inch)
1/4
Multi-Use Application
Boring
Hole Diameter (Mm) ( - 0 Decimals)
2.79
Insert Length (Inch)
1/4
Manufacturer Grade
PR1225
Length Range (Decimal Inch)
0.0000 - 0.3000
Iso Code
CCGT060202MFR-U
Product Overview
Turning Insert: CCGT21505MFRU PR1225, Solid Carbide Megacoat, Right Hand, 1/4" Inscribed Circle, 0.008" Corner Radius, 80 degree Diamond, Series ISOI
