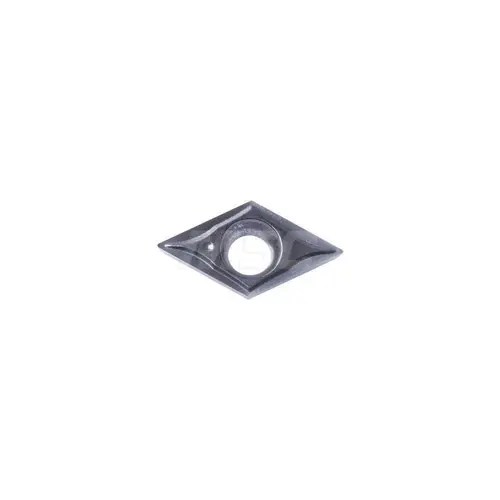

Kyocera TKE03436 Turning Insert: DCGT32505MFP-GQ, Solid Carbide MEGACOAT
Item #: TKE03436 by Kyocera SGS Precision Tools
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Sharp
Number of Cutting Edges
2
Standards
ANSI
Included Angle
55degree
Insert Material
Carbide
Series
ISOI
Coating Process
PVD
Coating/Finish
MEGACOAT
Corner Radius (Decimal Inch)
0.0080
Manufacturers Catalog Number
TKE03436
Material Grade
P10
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.3750in
Width (Inch)
3/8in
Coating Classification
PVD
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.9140
Insert Thickness (Decimal Inch)
0.1563
Insert Thickness (Inch)
5/32
Maximum Depth of Cut (Decimal Inch)
0.3047
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/128
Insert Shape
Diamond 55
Clearance Code
C
Rake Angle
5
Full Radius
No
Insert Shape Code
D
Chip Breaker
GQ
Secondary Workpiece Material Code
P
Insert Style
DCGT
Insert Size Code
32505
Tolerance Code
G
Hole Diameter (Decimal Inch)
0.1732
Relief Angle
7
Inscribed Circle (Inch)
3/8
Multi-Use Application
Back Boring
Hole Diameter (Mm) ( - 0 Decimals)
4.39
Manufacturer Grade
PR1225
Length Range (Decimal Inch)
0.7000 - 10.0000
Iso Code
DCGT11T302MFP-GQ
Product Overview
Turning Insert: DCGT32505MFP-GQ, Solid Carbide Megacoat, Neutral, 3/8" Inscribed Circle, 0.008" Corner Radius, 55 degree Diamond, Series ISOI
