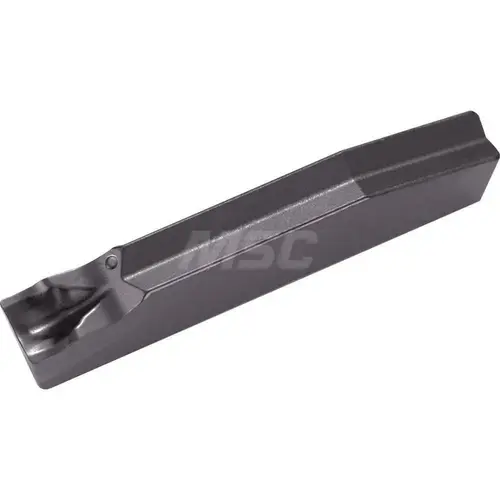

Kyocera TKE10533 Grooving Insert: GDM4020PM PR1225, Solid Carbide Megacoat
Item #: TKE10533 by Kyocera SGS Precision Tools
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
ANSI Code
GDM4020N030PMPR1225
Overall Length (mm)
20.00
Standards
ANSI
Insert Thickness
3.00
Insert Material
Solid Carbide
Series
GD
Coating Process
PVD
Coating/Finish
MEGACOAT
Corner Radius (Decimal Inch)
0.0118
Manufacturers Catalog Number
GDM4020N-030PM
Material Grade
Micrograin
Overall Length (Decimal Inch)
0.7874
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Vendor Drop Ship
N
Cutting Width (Decimal Inch)
0.1575
Insert Holding Method
Clamp
Insert Thickness (Decimal Inch)
0.1299
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Stainless Steel
Insert Hand
Neutral
Rake Angle
3.00
Chip Breaker
PM
Secondary Workpiece Material Code
M
Insert Style
GDM
Insert Size Code
4020
Cutting Height (Decimal Inch)
0.1693
Manufacturer Grade
PR1225
Corner Radius (mm)
0.30
Cutting Width (mm)
4.00
Iso Code
GDM4020N030PMPR1225
Cutting Height (mm)
4.30
Product Overview
Grooving Insert: GDM4020PM PR1225, Solid Carbide Megacoat, Neutral, 0.1575" Cutting Width, Series GD
