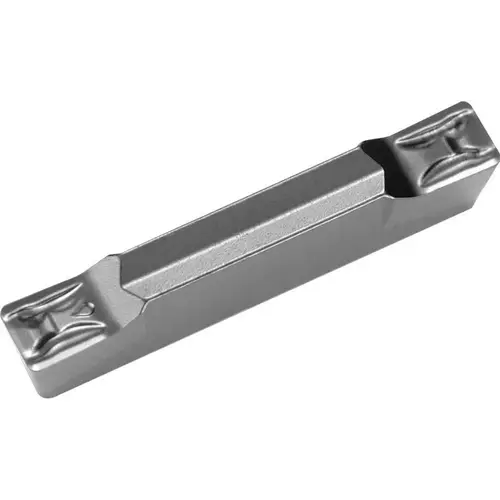

Grooving Insert: GDM3020GM PR1225, Solid Carbide Megacoat

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kyocera TKE10539 Grooving Insert: GDM3020GM PR1225, Solid Carbide Megacoat

Item #: TKE10539 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$35.87

/each
SAVE UP TO 3.59
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 77 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

GDM3020N020GMPR1225

Overall Length (mm)

20.00

Standards

ANSI

Insert Thickness

2.00

Insert Material

Solid Carbide

Series

GD

Coating Process

PVD

Coating/Finish

MEGACOAT

Corner Radius (Decimal Inch)

0.0078

Manufacturers Catalog Number

GDM3020N-020GM

Material Grade

Micrograin

Overall Length (Decimal Inch)

0.7874

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.1181

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.0906

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Rake Angle

2.00

Chip Breaker

GM

Secondary Workpiece Material Code

M

Insert Style

GDM

Insert Size Code

3020

Maximum Depth of Cut (mm)

25.50

Cutting Height (Decimal Inch)

0.1693

Manufacturer Grade

PR1225

Corner Radius (mm)

0.20

Cutting Width (mm)

3.00

Iso Code

GDM3020N020GMPR1225

Cutting Height (mm)

4.30

Product Overview
Grooving Insert: GDM3020GM PR1225, Solid Carbide Megacoat, Neutral, 3 mm Cutting Width, 25.5 mm Max Depth, Series GD
