Turning Insert: VCMT 1.51.50.5HQ PR930, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

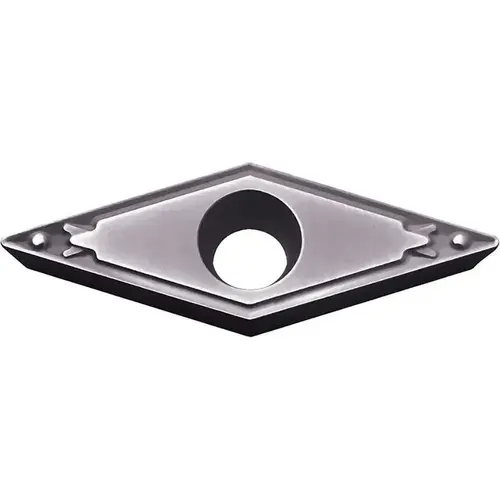

Kyocera TKT03790 Turning Insert: VCMT 1.51.50.5HQ PR930, Solid Carbide TiCN

Item #: TKT03790 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$28.84

/each
SAVE UP TO 2.88
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 28 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

35

Insert Material

Carbide

Series

ISOI

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0080

Manufacturers Catalog Number

TKT03790

Material Grade

Super Micrograin

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.1875

Width (Inch)

3/16

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.6304

Insert Thickness (Decimal Inch)

0.0938

Insert Thickness (Inch)

3/32

Maximum Depth of Cut (Decimal Inch)

0.2101

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.1875

Corner Radius (Inch)

1/128

Insert Shape

V - Diamond (Rhombic) 35-Deg

Clearance Code

C

Rake Angle

15

Full Radius

No

Insert Shape Code

V

Chip Breaker

HQ

Secondary Workpiece Material Code

M

Insert Style

VCMT

Insert Size Code

151505

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.0906

Relief Angle

7

Inscribed Circle (Inch)

3/16

Multi-Use Application

Back Boring

Hole Diameter (Mm) ( - 0 Decimals)

2.31

Chip Breaker Operation

Finishing

Manufacturer Grade

PR930

ISO Size Code

080202

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.6000 - 0.6500

ANSI Size Code

151505

ISO Insert Code

VCMT080202

Iso Code

VCMT080202HQ

ANSI Insert Code

VCMT151505

Product Overview
Turning Insert: VCMT 1.51.50.5HQ PR930, Solid Carbide TiCN Coated, Neutral, 3/16" Inscribed Circle, 0.008" Corner Radius, 35 degree Diamond, Series ISOI
