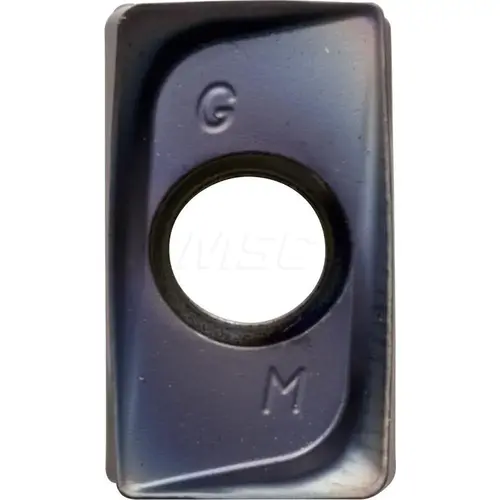

Milling Insert: LOMU150508ER-GM, PR1510, Solid Carbide MEGACOAT NANO

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kyocera TLA04356 Milling Insert: LOMU150508ER-GM, PR1510, Solid Carbide MEGACOAT NANO

Item #: TLA04356 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
In Stock

$24.80

/each
SAVE UP TO 2.48
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 24 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Material Application

Cast Iron

Length (mm)

15.70

ANSI Code

LOMU150508ERGMPR1510

Number of Cutting Edges

4

Standards

ANSI

Thickness (mm)

5.60

Insert Material

Solid Carbide

Series

MEW

Coating Process

PVD

Coating/Finish

MEGACOAT NANO

Corner Radius (Decimal Inch)

0.0312

Length (Decimal Inch - 4 Decimals)

0.6181

Manufacturers Catalog Number

LOMU150508ERGM

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Thickness (Decimal Inch - 4 Decimals)

0.2205

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3622

Width (mm - 2 Decimals)

9.20

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.6181

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Superalloys & Titanium

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3622

Corner Radius (Inch)

1/32

Insert Shape

Rectangle

Chip Breaker

ER-GM

Secondary Workpiece Material Code

S

Insert Style

LOMU

Insert Size Code

150508

Hole Diameter (Decimal Inch)

0.1890

Included Angle Degree

90

Hole Diameter (Mm) ( - 0 Decimals)

0.19

Manufacturer Grade

PR1510

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Single or Double Sided Insert

Single

Cutter Series Compatibility

MEW

Length Range (Decimal Inch)

0.6000 to 0.6500

Thickness Range (Decimal Inch)

0.2200 to 0.2350

Corner Radius (mm)

0.80

Iso Code

LOMU150508ER-GM

Product Overview
Milling Insert: LOMU150508ER-GM, PR1510, Solid Carbide Coated, 5.6 mm Thick, 9.2 mm Wide
