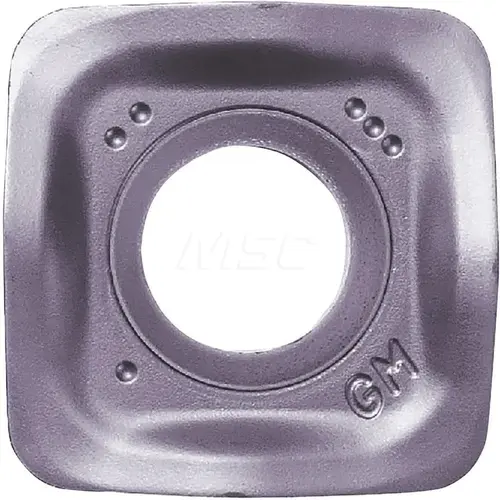

Kyocera TLC05627 Milling Insert: SOMT140520ER-GM, PR1535, Solid Carbide MEGACOAT NANO

Item #: TLC05627 by Kyocera SGS Precision Tools

Brand: Kyocera

See reviewsSee reviews
See reviews summary
In Stock

$34.54

/each
SAVE UP TO 3.45
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1573 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Cutting Edge Style

Honed

Material Application

Stainless Steel

ANSI Code

SOMT140520ERGMPR1535

Number of Cutting Edges

4

Standards

ANSI

Thickness (mm)

5.56

Insert Material

Solid Carbide

Series

MFHR

Coating Process

PVD

Coating/Finish

MEGACOAT NANO

Corner Radius (Decimal Inch)

0.0781

Length (Decimal Inch - 4 Decimals)

0.5567

Manufacturers Catalog Number

SOMT140520ERGM

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

Thickness (Decimal Inch - 4 Decimals)

0.2189

Thickness (Inch)

7/32

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5567

Width (mm - 2 Decimals)

14.14

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.4786

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.5567

Corner Radius (Inch)

5/64

Insert Shape

Square

Chip Breaker

ER-GM

Secondary Workpiece Material Code

P

Insert Style

SOMT

Insert Size Code

140520

Hole Diameter (Decimal Inch)

0.2283

Relief Angle

16

Included Angle Degree

90

Hole Diameter (Mm) ( - 0 Decimals)

0.23

Manufacturer Grade

PR1535

Inscribed Circle Range (Decimal Inch)

0.5100 to 0.6000

Single or Double Sided Insert

Single

Cutter Series Compatibility

MFH

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.2000 to 0.2200

Inscribed Circle (mm)

14.14

Corner Radius (mm)

2.00

Iso Code

SOMT140520ER-GM

Product Overview
Milling Insert: SOMT140520ER-GM, PR1535, Solid Carbide Coated, 7/32" Thick, 14.14 mm Wide
