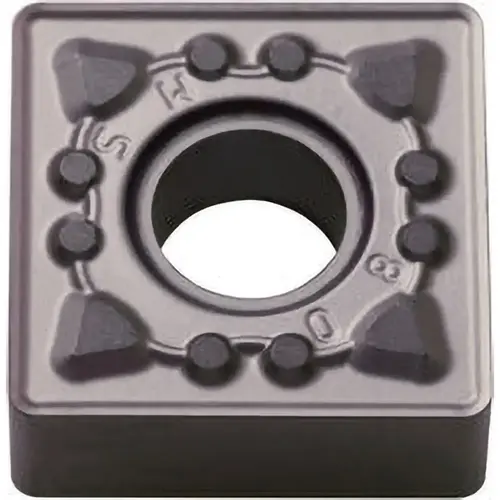

Turning Insert: SNMG433MS PR1535, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kyocera TLC55233-XCP10 Turning Insert: SNMG433MS PR1535, Solid Carbide - pack of 10

Item #: TLC55233-XCP10 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$180.25

/package
SAVE UP TO 18.02
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

8

Standards

ANSI

Insert Thickness

4.76

Included Angle

90degree

Insert Material

Carbide

Series

ISOI

Coating Process

PVD

Coating/Finish

MEGACOAT NANO

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

TLC55233

Material Grade

M30

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Width (mm - 2 Decimals)

12.70

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5000

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1667

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

3/64

Insert Shape

Square

Clearance Code

N

Rake Angle

-19

Full Radius

No

Insert Shape Code

S

Chip Breaker

MS

Secondary Workpiece Material Code

M

Insert Style

SNMG

Insert Size Code

433

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2032

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Boring

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Insert Length (Inch)

1/2

Manufacturer Grade

PR1535

Length Range (Decimal Inch)

0.5000 - 0.6000

Inscribed Circle (mm)

12.70

Corner Radius (mm)

1.19

Iso Code

SNMG120412MS

Product Overview
Turning Insert: SNMG433MS PR1535, Solid Carbide Megacoat Nano, Neutral, 1/2" Inscribed Circle, 3/64" Corner Radius, 90 degree Square, Series ISOI
