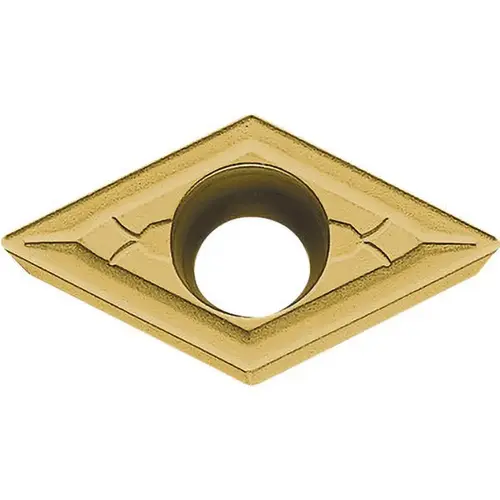

Kyocera TLD64038 Turning Insert: DCMT21505GK PV720, Cermet TiCN
Item #: TLD64038 by Kyocera SGS Precision Tools
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Honed
Number of Cutting Edges
2
Standards
ANSI
Included Angle
55degree
Insert Material
Cermet
Series
ISOI
Coating Process
PVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0080
Manufacturers Catalog Number
TLD64038
Material Grade
P01
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.2500in
Width (Inch)
1/4in
Coating Classification
PVD
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.6140
Insert Thickness (Decimal Inch)
0.0938
Insert Thickness (Inch)
3/32
Maximum Depth of Cut (Decimal Inch)
0.2047
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Stainless Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.2500
Corner Radius (Inch)
1/128
Insert Shape
Diamond 55
Clearance Code
C
Rake Angle
17
Full Radius
No
Insert Shape Code
D
Chip Breaker
GK
Secondary Workpiece Material Code
M
Insert Style
DCMT
Insert Size Code
21505
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1102
Relief Angle
7
Inscribed Circle (Inch)
1/4
Multi-Use Application
Back Boring
Hole Diameter (Mm) ( - 0 Decimals)
2.79
Manufacturer Grade
PV720
Length Range (Decimal Inch)
0.6000 - 0.6500
Iso Code
DCMT070202GK
Product Overview
Turning Insert: DCMT21505GK PV720, Cermet TiCN (Megacoat Nano), Neutral, 1/4" Inscribed Circle, 0.008" Corner Radius, 55 degree Diamond, Series ISOI
