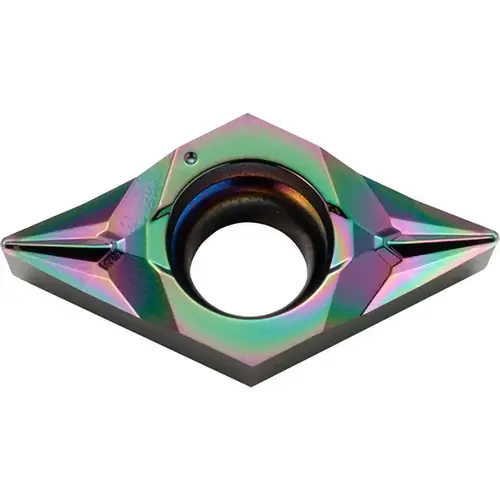

Turning Insert: DCGT2151MFPSK PDL025, Solid Carbide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kyocera TLE03232 Turning Insert: DCGT2151MFPSK PDL025, Solid Carbide

Item #: TLE03232 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary

$25.88

/each
SAVE UP TO 2.59
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Number of Cutting Edges

2

Standards

ANSI

Included Angle

55

Insert Material

Carbide

Series

ISOI

Coating Process

DLC

Coating/Finish

C

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

TLE03232

Material Grade

N01

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.25

Width (Inch)

1/4

Coating Classification

DLC

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.6140

Insert Thickness (Decimal Inch)

0.0938

Insert Thickness (Inch)

3/32

Maximum Depth of Cut (Decimal Inch)

0.2047

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Corner Radius (Inch)

1/64

Insert Shape

Diamond

Clearance Code

C

Rake Angle

18

Full Radius

No

Insert Shape Code

D

Chip Breaker

SK

Insert Style

DCGT

Insert Size Code

2151

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1102

Relief Angle

7

Inscribed Circle (Inch)

1/4

Multi-Use Application

Back Boring

Manufacturer Grade

PDL025

Length Range (Decimal Inch)

0.6000 - 0.6500

Iso Code

DCGT070204MFP-SK

Product Overview
Turning Insert: DCGT2151MFPSK PDL025, Solid Carbide Al2O3 Coated, Neutral, 1/4" Inscribed Circle, 1/64" Corner Radius, 55 degree Diamond, Series ISOI
