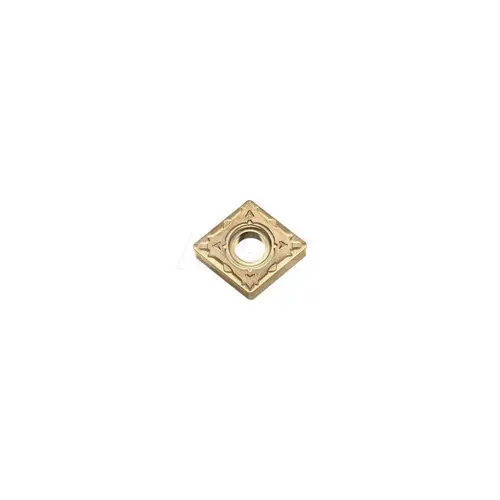

Kyocera TLF01815 Turning Insert: CNMG431WP PV710, Cermet TiCN
Item #: TLF01815 by Kyocera SGS Precision Tools
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
4
Standards
ANSI
Included Angle
80degree
Insert Material
Cermet
Series
ISOI
Coating Process
PVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0156
Manufacturers Catalog Number
TLF01815
Material Grade
P01
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5000in
Width (Inch)
1/2in
Coating Classification
PVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.5000
Insert Thickness (Decimal Inch)
0.1875
Insert Thickness (Inch)
3/16
Maximum Depth of Cut (Decimal Inch)
0.1667
Multi-use Tool
Yes
Rake
Negative
Secondary Workpiece Material
Stainless Steel
Insert Hand
Neutral
Wiper Edge
Yes
Inscribed Circle (Decimal Inch)
0.5000
Corner Radius (Inch)
1/64
Insert Shape
Diamond 80
Clearance Code
N
Rake Angle
-20
Full Radius
No
Insert Shape Code
C
Chip Breaker
WP
Secondary Workpiece Material Code
M
Insert Style
CNMG
Insert Size Code
431
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.2032
Relief Angle
0
Inscribed Circle (Inch)
1/2
Multi-Use Application
Boring
Insert Length (Inch)
1-1/64
Manufacturer Grade
PV710
Length Range (Decimal Inch)
0.5000 - 0.6000
Iso Code
CNMG120404WP
Product Overview
Turning Insert: CNMG431WP PV710, Cermet TiCN (Megacoat Nano), Neutral, 1/2" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series ISOI
