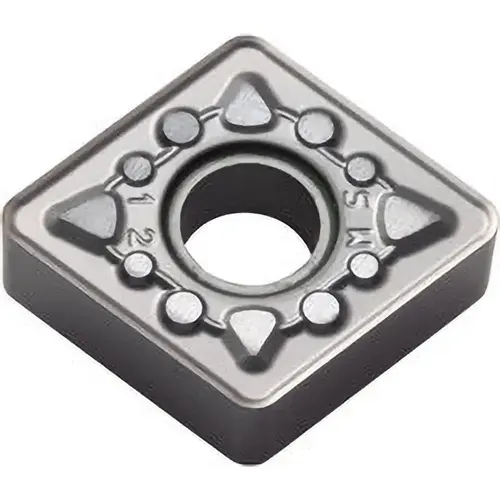

Kyocera TLJ00922-XCP10 Turning Insert: CNMG432MS PR015S, Solid Carbide - pack of 10

Item #: TLJ00922-XCP10 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$175.47

/package
SAVE UP TO 17.55
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 17 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

CNMG120408MS

Length Range (Decimal Inch)

0.5000 - 0.6000

Manufacturer Grade

PR015S

Insert Length (Inch)

1-1/64

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Multi-Use Application

Boring

Inscribed Circle (Inch)

1/2

Relief Angle

0

Hole Diameter (Decimal Inch)

0.2032

Tolerance Code

M

Insert Size Code

432

Insert Style

CNMG

Chip Breaker

MS

Insert Shape Code

C

Full Radius

No

Rake Angle

-19

Clearance Code

N

Insert Shape

Diamond 80

Corner Radius (Inch)

1/32

Inscribed Circle (Decimal Inch)

0.5000

Wiper Edge

No

Insert Hand

Neutral

Rake

Negative

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.1667

Insert Thickness (Inch)

3/16

Insert Thickness (Decimal Inch)

0.1875

Insert Length (Decimal Inch)

0.5000

Insert Holding Method

Clamp

Coating Classification

PVD

Width (Inch)

1/2in

Width (Decimal Inch - 4 Decimals)

0.5000in

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

S

Primary Workpiece Material

Superalloys

Material Grade

S10

Manufacturers Catalog Number

TLJ00922

Corner Radius (Decimal Inch)

0.0313

Coating/Finish

MEGACOAT HARD

Coating Process

PVD

Series

ISOI

Insert Material

Carbide

Included Angle

80degree

Standards

ANSI

Number of Cutting Edges

4

Cutting Edge Style

Chamfered & Honed

Product Overview
Turning Insert: CNMG432MS PR015S, Solid Carbide Megacoat Hard, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series ISOI
