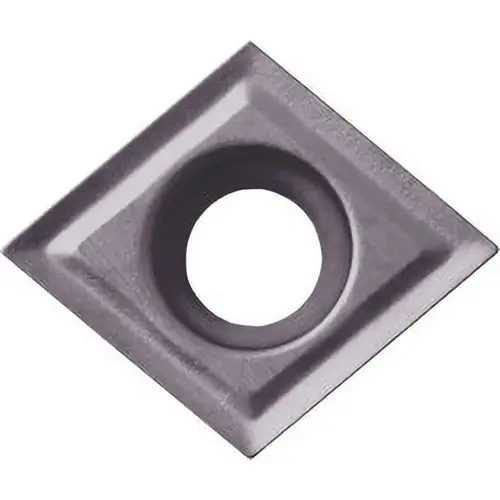

Kyocera TLM00049 Turning Insert: CCGT32502MF PR1725, Solid Carbide MEGACOAT NANO PLUS
Item #: TLM00049 by Kyocera SGS Precision Tools
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Width (Inch)
3/8in
Insert Material
Carbide
Insert Thickness (Decimal Inch)
0.1563
Vendor Drop Ship
N
Maximum Depth of Cut (Decimal Inch)
0.1250
Iso Code
CCGT09T301MF
Insert Length (Inch)
3/8
Width (Decimal Inch - 4 Decimals)
0.3750in
Secondary Workpiece Material
Steel
Relief Angle
7
Cutting Edge Style
Sharp
Clearance Code
C
Rake
Positive
Material Grade
P01
Insert Length (Decimal Inch)
0.3750
Insert Holding Method
Screw
Coating/Finish
MEGACOAT NANO PLUS
Rake Angle
15
UNSPSC Code
23242105
Corner Radius (Inch)
1/256
Insert Style
CCGT
Manufacturers Catalog Number
TLM00049
Insert Hand
Neutral
Manufacturer Grade
PR1725
Inscribed Circle (Inch)
3/8
Secondary Workpiece Material Code
P
Standards
ANSI
Inscribed Circle (Decimal Inch)
0.3750
Coating Process
PVD
Primary Workpiece Material
Steel
Insert Shape Code
C
Corner Radius (Decimal Inch)
0.0040
Insert Thickness (Inch)
5/32
Hole Diameter (Decimal Inch)
0.1732
Chip Breaker
F
Multi-Use Application
Boring
Length Range (Decimal Inch)
0.3000 - 0.4000
Multi-use Tool
Yes
Full Radius
No
Tolerance Code
G
Coating Classification
PVD
Wiper Edge
No
Insert Size Code
32502
Included Angle
80degree
Number of Cutting Edges
2
Series
ISOI
Insert Shape
Diamond 80
Primary Workpiece Material Code
P
Product Overview
Turning Insert: CCGT32502MF PR1725, Solid Carbide Megacoat Nano Plus, Neutral, 3/8" Inscribed Circle, 0.0039" Corner Radius, 80 degree Diamond, Series CCGT
