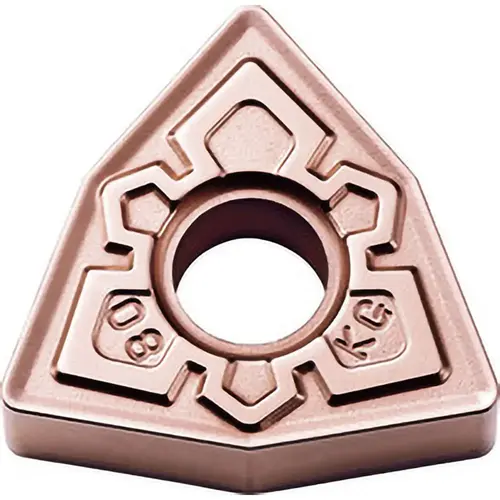

Turning Insert: WNMG432KG CA310, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kyocera TMC08662 Turning Insert: WNMG432KG CA310, Solid Carbide TiCN

Item #: TMC08662 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$17.51

/each
SAVE UP TO 1.75
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 50 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

6

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

ISOI

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

TMC08662

Material Grade

K01

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6840in

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6840

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.2280

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Trigon 80

Clearance Code

N

Rake Angle

-14

Full Radius

No

Insert Shape Code

W

Chip Breaker

KG

Secondary Workpiece Material Code

K

Insert Style

WNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2032

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Boring

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Manufacturer Grade

CA310

Length Range (Decimal Inch)

0.6500 - 0.7000

Iso Code

WNMG080408KG

Product Overview
Turning Insert: WNMG432KG CA310, Solid Carbide TiCN & Al2O3 Coated, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon, Series CA3
