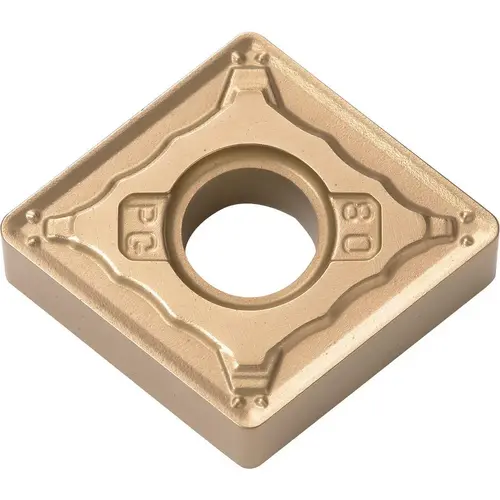

Turning Insert: CNMG120404PG CA025P TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kyocera TMH00008 Turning Insert: CNMG120404PG CA025P TiCN

Item #: TMH00008 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
In Stock

$16.56

/each
SAVE UP TO 1.66
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Width (Inch)

1/2

Insert Material

Carbide

Insert Thickness (Decimal Inch)

0.1875

Side Clearance

Negative

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.0590

ISO Insert Code

CNMG120404

Iso Code

CNMG120404PG

Grade Characteristics

Steel (P) - High Wear-Resistance to High Toughness

Insert Length (Inch)

1/2

Width (Decimal Inch - 4 Decimals)

0.5000

Relief Angle

0

Cutting Edge Style

Chamfered

Clearance Code

N

Rake

Negative

Material Grade

P10

ANSI Insert Code

CNMG431

Insert Length (Decimal Inch)

0.5000

Insert Holding Method

Clamp

Coating/Finish

TiCN

Rake Angle

-15

UNSPSC Code

23242105

Corner Radius (Inch)

1/64

Insert Style

CNMG

Manufacturers Catalog Number

TMH00008

ANSI Size Code

431

Insert Hand

Neutral

Manufacturer Grade

CA025P

Inscribed Circle (Inch)

1/2

Inscribed Circle (Decimal Inch)

0.5000

Coating Process

CVD

Primary Workpiece Material

Steel

Insert Shape Code

C

Corner Radius (Decimal Inch)

0.0156

Insert Thickness (Inch)

3/16

Hole Diameter (Decimal Inch)

0.2032

Chip Breaker

PG

Multi-Use Application

Boring

Length Range (Decimal Inch)

0.5000 - 0.6000

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

M

Coating Classification

CVD

ISO Size Code

120404

Wiper Edge

No

Insert Size Code

431

Included Angle

80

Number of Cutting Edges

4

Series

ISOI

Insert Shape

C - Diamond (Rhombic) 80-Deg

Chip Breaker Operation

Roughing

Primary Workpiece Material Code

P

Product Overview
Turning Insert: CNMG120404PG CA025P TiCl2O3 & TiN Coated, Neutral, 1/2" Inscribed Circle, 0.0157" Corner Radius, 80 degree Diamond, Series CA0P
