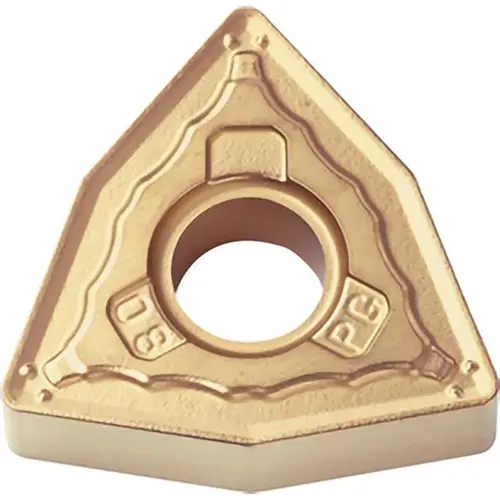

Kyocera TMH00069-XCP10 Turning Insert: WNMG432PGCA025P, Solid Carbide - pack of 10

Item #: TMH00069-XCP10 by Kyocera SGS Precision Tools

Brand: Kyocera

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$180.37

/package
SAVE UP TO 18.04
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Cutting Edge Style

Chamfered

Number of Cutting Edges

6

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

ISOI

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

TMH00069

Material Grade

P10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6840

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6840

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0590

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

W - Trigon 80-Deg

Clearance Code

N

Rake Angle

-15

Full Radius

No

Insert Shape Code

W

Chip Breaker

PG

Insert Style

WNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2032

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Boring

Chip Breaker Operation

Roughing

Manufacturer Grade

CA025P

ISO Size Code

080402

Grade Characteristics

Steel (P) - High Wear-Resistance to High Toughness

Length Range (Decimal Inch)

0.6500 - 0.7000

ANSI Size Code

432

ISO Insert Code

WNMG080402

Iso Code

WNMG080408PG

ANSI Insert Code

WNMG432

Product Overview
Turning Insert: WNMG432PGCA025P, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon, Series ISOI
