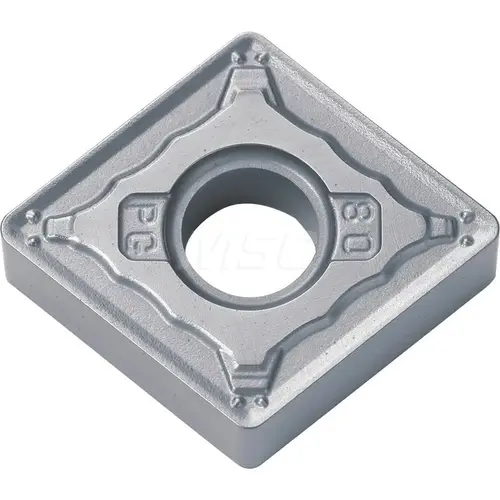

Kyocera TSR01801-XCP10 Turning Insert: CNMG431PG TN620, Cermet - pack of 10

Item #: TSR01801-XCP10 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$158.24

/package
SAVE UP TO 15.82
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Included Angle

80degree

Insert Material

Cermet

Series

ISOI

Coating Process

Uncoated

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

TSR01801

Material Grade

P01

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242107

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Coating Classification

Uncoated

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5000

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1667

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/64

Insert Shape

Diamond 80

Clearance Code

N

Rake Angle

-15

Full Radius

No

Insert Shape Code

C

Chip Breaker

PG

Insert Style

CNMG

Insert Size Code

431

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2032

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Boring

Insert Length (Inch)

1/2

Manufacturer Grade

TN620

Length Range (Decimal Inch)

0.5000 - 0.6000

Iso Code

CNMG120404PG

Product Overview
Turning Insert: CNMG431PG TN620, Cermet TiCN Coated, Neutral, 1/2" Inscribed Circle, 0.0157" Corner Radius, 80 degree Diamond
