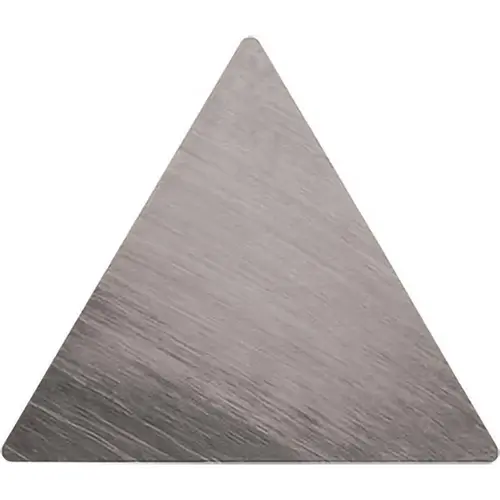

Turning Insert: TPG322 TN620, Cermet TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kyocera TSR06937 Turning Insert: TPG322 TN620, Cermet TiCN

Item #: TSR06937 by Kyocera SGS Precision Tools

See reviewsSee reviews
See reviews summary
In Stock

$16.61

/each
SAVE UP TO 1.66
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 140 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

3

Standards

ANSI

Included Angle

60degree

Insert Material

Cermet

Series

ISOI

Coating Process

Uncoated

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

TSR06937

Material Grade

P01

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6501in

Coating Classification

Uncoated

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6501

Insert Thickness (Decimal Inch)

0.1250

Insert Thickness (Inch)

1/8

Maximum Depth of Cut (Decimal Inch)

0.2167

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/32

Insert Shape

Triangle

Clearance Code

P

Full Radius

No

Insert Shape Code

T

Insert Style

TPG

Insert Size Code

322

Tolerance Code

G

Relief Angle

11

Inscribed Circle (Inch)

3/8

Multi-Use Application

Boring

Manufacturer Grade

TN620

Length Range (Decimal Inch)

0.6500 - 0.7000

Iso Code

TPGN160308

Product Overview
Turning Insert: TPG322 TN620, Cermet Neutral, 3/8" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series TPG
