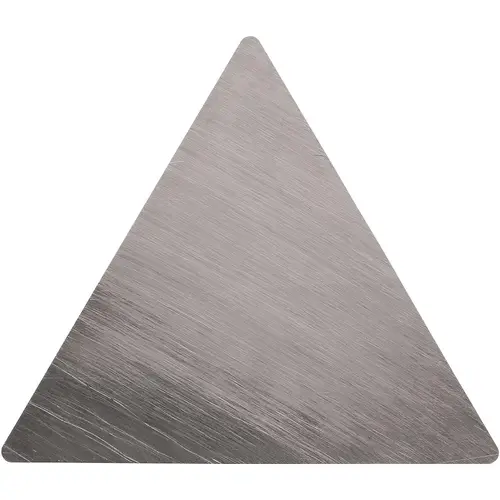

Kyocera TSS06937 Turning Insert: TPGN160308 TN610 TiCN
Item #: TSS06937 by Kyocera SGS Precision Tools
Brand: Kyocera
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Number of Cutting Edges
3
Included Angle
60degree
Insert Material
Cermet
Series
ISOI
Coating Process
Uncoated
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0313
Manufacturers Catalog Number
TSS06937
Material Grade
P01
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.6501in
Coating Classification
Uncoated
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.6501
Insert Thickness (Decimal Inch)
0.1250
Insert Thickness (Inch)
1/8
Maximum Depth of Cut (Decimal Inch)
0.2167
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/32
Insert Shape
Triangle
Clearance Code
P
Full Radius
No
Insert Shape Code
T
Insert Style
TPG
Insert Size Code
322
Tolerance Code
G
Relief Angle
11
Inscribed Circle (Inch)
3/8
Multi-Use Application
Boring
Manufacturer Grade
TN610
Length Range (Decimal Inch)
0.6500 - 0.7000
Iso Code
TPGN160308
Product Overview
Turning Insert: TPGN160308 TN610 Uncoated, Neutral, 3/8" Inscribed Circle, 0.0315" Corner Radius, 60 degree Triangle, Series HYBCERM
