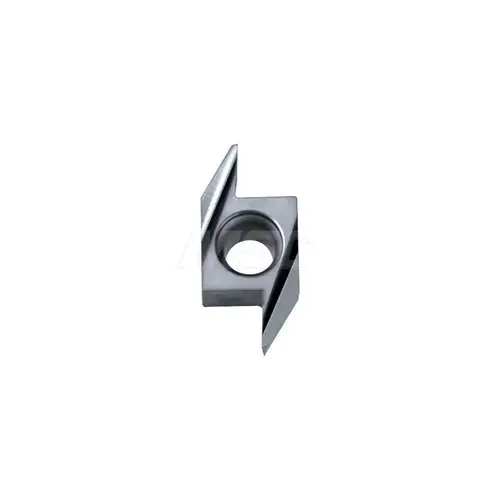

Kyocera TWE01192 Turning Insert: ABS15R4015 KW10, Solid Carbide WC-Co
Item #: TWE01192 by Kyocera SGS Precision Tools
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Honed
Number of Cutting Edges
2
Standards
ANSI
Insert Thickness
3.97
Included Angle
75degree
Insert Material
Carbide
Series
APBT
Coating Process
Uncoated
Coating/Finish
WC-Co
Corner Radius (Decimal Inch)
0.0590
Manufacturers Catalog Number
TWE01192
Material Grade
K10
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
UNSPSC Code
23242105
Vendor Drop Ship
Y
Width (Decimal Inch - 4 Decimals)
0.2756in
Coating Classification
Uncoated
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.6063
Insert Thickness (Decimal Inch)
0.1563
Insert Thickness (Inch)
5/32
Lead Angle
30degree
Maximum Depth of Cut (Decimal Inch)
0.1650
Multi-use Tool
No
Rake
Positive
Secondary Workpiece Material
Cast Iron
Insert Hand
Right Hand
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.2760
Insert Length (mm)
15.40
Insert Shape
Irregular
Clearance Code
B
Full Radius
No
Insert Shape Code
A
Chip Breaker
Common
Secondary Workpiece Material Code
K
Insert Style
ABS
Insert Size Code
15-4015
Tolerance Code
S
Hole Diameter (Decimal Inch)
0.1181
Relief Angle
15
Multi-Use Application
Back Turning
Hole Diameter (Mm) ( - 0 Decimals)
3.00
Maximum Depth of Cut (mm)
4.20
Manufacturer Grade
KW10
Length Range (Decimal Inch)
0.6000 - 0.6500
Corner Radius (mm)
0.15
Iso Code
ABS15R4015
Product Overview
Turning Insert: ABS15R4015 KW10, Solid Carbide Uncoated, Neutral, 15.4 mm Long, 0.15 mm Corner Radius, Series APBT
