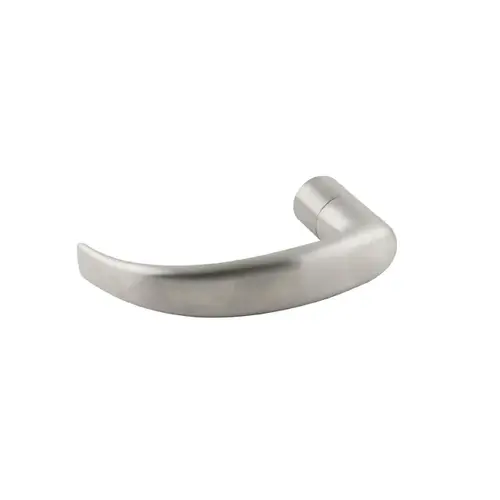

Schlage Commercial 09-402 17 626Click To Copy L Series 17 Design Interior Lever with Screw Pack, Mounting Plate, and Wrench Satin Chrome Finish

Schlage L SERIES OVERVIEW

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.

FEATURES & BENEFITS

Security

• Exceeds ANSI/BHMA Grade 1 Security and Operational standards
• Deadbolt functions include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock picking by removing levers


Function availability and compatibility

• 55+ standard functions (custom functions are also available)
• Universal lock case allows 10 functions to be created from a single lock body
• Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency


Aesthetics

• 14 finishes
• 33 lever, two knob, five rose and three escutcheon designs
• Locking lever bushing eliminates exposed screws on inside levers
• All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT


Options

• Exclusive 180 degree visibility indicator
• Vandlgard free-wheeling outside trim option is available on most functions, including electrified
• Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
• New Gold Standard ligature resistant trim for behavioral health applications

AVAILABLE L SERIES FUNCTIONS

View the Schlage L Series catalog for descriptions of all available functions.

CERTIFICATIONS & TESTING

View the Schlage L Series catalog to see all specifications and certifications.

Certifications

• Meets BAA (Buy American Act)
• L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
• UL listed for 3-hour fire door (except L9076 and L9077)
• With interchangeable core cylinders: Grade 2 security
• With concealed shell cylinder: A156.13 Grade 1 operational and security
• ANSI/ASTM F476-76 Grade 40, UL listed
• L400: tested and certified under ANSI/BHMA A156.36 Grade 1
• California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
• UL/cUL listed for A label single doors, 4 ft x 10 ft and pairs 8 ft x 10 ft; letter F and UL symbol on latch front indicate listing
• Electrified functions are UL19X listed for single-point locking applications
• UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
• Miami-Dade NOA's and Florida Building Commission Listings
• Meet ADA requirements

DOWNLOADS & RESOURCES

• Schlage L Series Catalog
• Schlage L Series Electrified Data Sheet
• NEW! Schlage HSLR High Risk Ligature Resistant Trim Data Sheet
• Schlage SL1/SK1 Ligature Resistant Trim Data Sheet
• Schlage L Series 180 Indicator Data Sheet
• Schlage M Collection Levers Data Sheet
• Decorative Levers Brochure
• Securing Your School - Door Hardware Solutions for Education
• Allegion Connect Data Sheet
• Classroom Upgrade Kits

Technical resources

• Schlage L Series Service Manual
• Schlage L Series Templates
• L Series Universal Transformation Guide
