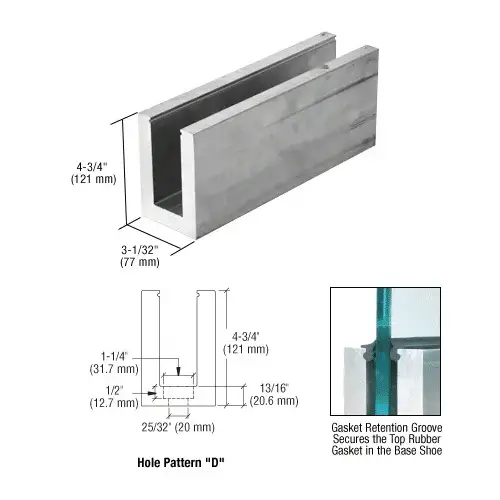

CRL L68S10D Mill L68S Series Aluminum 118-1/8" Long Square Base Shoe Drilled for 11/16" Glass
Item #: L68S10D by CR Laurence
In Stock $962.78 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For 11/16" (17.52 mm) Laminated Tempered Glass (8 x 1.52 x 8 mm)
- Pre-Drilled in 3 Meter (118") Lengths
- Typically Used as the Base Channel for Glass Railing Systems or Windscreens
- Drilled and Counter Bored 11-13/16" (300 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
- Works with LTL96X TAPER-LOC® Taper Sets
- Custom Cutting and Mitering Service Available
- CRL Recommends Consulting with the Glass Fabricator Prior to Wet Setting Laminated Tempered Glass
- CRL Glass Railing Systems Meets NBC Load Requirements When Installed in Accordance to ICC-3842
Hole Size
25/32" (20 mm)
Stock Length
118-1/8" (3 m)
Counter Bore X Depth
1-1/4" (31.7 mm) x 1/2" (12.7 mm) 11-13/16" (300 mm)
Finish
Mill
Height
4-3/4
Glazing Type
Laminated
Width
3-1/32
Drilling Center to Center
11-13/16
Glazing Thickness
11/16
Length
118-1/8
Material
Aluminum
Finish/Color
Mill
The CRL L68S Series Laminated Square Base Shoe is used as the base channel for glass railing systems. It can be clad in four choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with instructions, installations hints, cleaning and refinishing techniques available.
GLASS SPECIFICATIONS:
For use with 11/16" (17.52 mm) Laminated Tempered Glass (8 x 1.52 x 8 mm)
Thickness Range: .666" (16.9 mm) to .713" (18.12 mm)
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
All pre-drilled CRL Base Shoes have a +1/8 (3mm) / -1/16 (1.5mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
.
