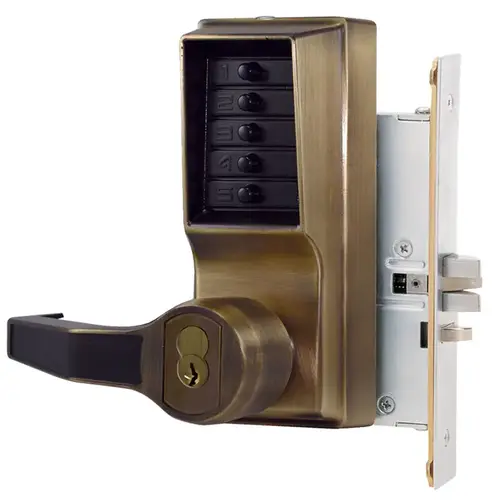

Kaba Access L8146C-05-41 Pushbutton Lock Satin Brass Blackened Satin Relieved Clear Coated

Item #: L8146C-05-41 by Ilco

Brand: Kaba Access

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$907.88

/each
SAVE UP TO 90.79
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available

Finish: Satin Brass Blackened Satin Relieved Clear Coated

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Backset: 2¾" (70 mm)
  • Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
  • Minimum Stile Recommended: 5" (127 mm)
  • Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
  • Key Override Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
  • Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
  • Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)
  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
  • Durability: Weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
  • Warranty: 3-year warranty

Base Material

Brass

Lock Platform

Mortise Lock

Color Code

609/US5

Package Qty

1

Cylinder Type

Corbin Russwin 6-Pin LFIC Core

Special Marks

Complies with ADA accessibility guidelines

Color

Satin Brass Blackened Satin Relieved Clear Coated

Finish

609 - Antique Brass

Grade

Grade 1

Handing

Left Hand

Keyed

Yes

Handle Type

Lever

Key Override

C - LFIC, Corbin Russwin (6-pin length), Core not included

Lock Type

Mortise

Segment

Door Hardware

Product Overview

Mortise Combination Lever Lock, Key Override, Passage, Lockout, Corbin Russwin 6-Pin LFIC Prep, Less Core, Antique Brass

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Provides exterior access by combination, while allowing free egress.
