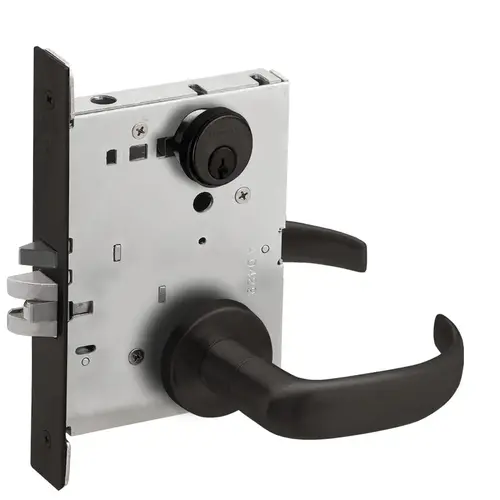

Schlage Commercial L9080P 17A 622 Mortise Lock Flat Black Coated
Item #: L9080P 17A 622 by Schlage Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Color
Flat Black Coated
Color Code
622/US19
Fire Rated
3 Hours {A}
Origin
Mexico
Package Height
5.625
Package Length
10.375
Package Volume
313.6816406
Package Width
5.375
Grade
ANSI/BHMA Grade 1
Hand
Reversible
Backset
2-3/4 Inch
Handing
Reversible
Warranty
3 Year Limited Mechanical
Keyway
Schlage C
Function
9080-Storeroom
Handle Type
Lever
Door Thickness
1-3/4 inch
Rose Diameter
2-1/8 Inch (54mm)
Cylinder Type
Conventional Full-Face Cylinder
Latch Throw
3/4 Inch
Finish Description
Matte Black
ANSI Function
F07
Latch Type
Stainless Steel Latch with Anti-Friction Tongue
Strike Type
Curved Lip
ADA Compliant
YES
Finish Family
Black
Lever Style
17-Lever
Strike Size
1-1/4" x 4-7/8"
Rose/Escutcheon Trim
A-Wrought Rose
Standards
ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security; ASTM F476-76 Grade 40; Complies with ICC A117.1; UL 10C and CAN/ULC-S104; Miami-Dade NOA's and Florida Building Commission Listings
Cylinder Type Used
Conventional Full-Face Cylinder
Case Dimensions
4-7/16" x 6-1/16" x 1"
Function Description
Outside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt.
Front Size
1-1/4" x 8" x 7/32"
Function Family
Storeroom
Strike Lip
1-3/16 Inch
Product Projection
3 Inch
Rose/Escutcheon Width
2-1/8 Inch (54mm)
Rose/Escutcheon Length
2-1/8 Inch (54mm)
Features
Latchbolt Retracted by Lever/Knob Inside or Key Outside; Outside Lever/Knob is Always Inoperable; Auxiliary Latch Deadlocks Latchbolt When Door is Closed; Inside Lever Always Free for Immediate Egress
Product Type
Mortise Lock
Series
L Series
Manufacturer Parent
Allegion
Knob/Lever Size
4-3/4 Inch
Lever Style Family
Curved Return Lever
Sub-Series
L9080P-17A
Finish
Matte Black
Dimension
2-1/8" Rose with 4-3/4" Lever and 3" Projection
Material
Zinc Base
Strike
ANSI Strike
Manufacturer Warranty
Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Rose/Escutcheon Design
A Rose
UL Listing Type
UL Listed for 3 Hour Fire Door
Door Range
1-3/4"
Hazardous Material
No
Strike Dimension
4-7/8" with 1-1/4" Lip
Finish code
622
Latch Faceplate Dimension
1-1/4" x 8"
Lever Knob Design
17 Lever
No of inners
1
No Of Pins
6 Pin Keyway
Product Overview
Schlage L-Series, Storeroom Mortise Lock, A Rose, 17 Lever, Grade 1 Mortise Lock, Flat Black Coated
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement
Extra heavy duty mortise lock protected by all metal heavy-gauge steel.
Schlage L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.
Durability and Strength
- Heavy-gauge, fully wrapped steel case protects against door edge attacks
- All-metal zinc dichromate-plated working parts
- Electronic components protected by inside lock case
- Wear and tear reduced by two-piece anti-friction tongue
- Outside and inside trim thru-bolted together and through the door
Built-in Security
- Unsecured failures prevented by break-away spindle, also providing easy spindle replacement
- Spindle manipulation discouraged by hub blocking plate
- Spring-loaded fusible link provides fail secure mode in case of fire
- Inside lever applied by screwless shank mounting - no exposed trim mount screws
Adaptable to your application
- Universal lock case featuring ten functions in one case
- Floating mounting tabs adjust to fit a beveled door edge
- Field-reversible handing without opening lock case
- Simple trim retrofit made possible by external spring cages
- Locking thumb-turn on the inside of door shows when the door is unlocked and locked
- Lever rotation in both directions for ease of use
- Independent lever rotation
