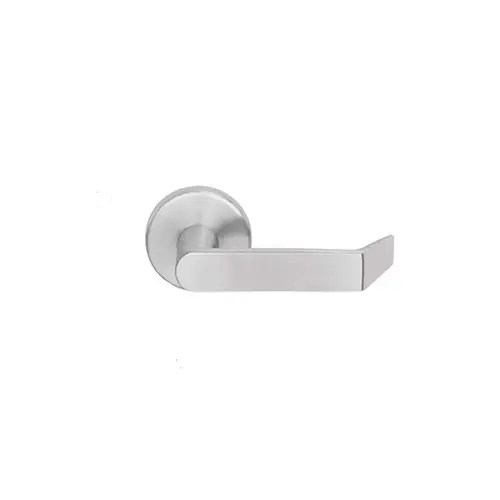

Schlage L9091EU 06B 626 KIT - 06B Electric Lock/Unlock Both Levers Mortise Lock, No Key Override, Field Selectable EU/EL, 12/24VDC, Includes CON-6W 6" Wire Extension, 626/US26D Satin Chrome
Item #: L9091EU 06B 626 by Schlage Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Strike Number
10-072
Amp Draw
400mA
Color
Satin Chromium Plated
Function
9091EU-Fail Secure
Hand
Field Reversible
Grade
Grade 1
Fire Rated
3 Hours {A}
Secondary Finish
0
Special Marks
Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Dust Box
Plastic
Strike Width
1-1/4 In.
ADA Compliance
Yes
Operating Voltage
12VDC/24VDC
Package Qty
1
Screws
Combination
Door Thickness
1-3/4 In.
ANSI Number
0
Bolt Protection
3/4 In.
Color Code
626/US26D
Strike Type
ASA
Switch Type
None
Rose/Escutcheon Design
B - Rose
Base Material
Brass or Bronze
Strike Height
4-7/8 In.
Lever/Knob Design
06 - Lever
Power
Hard Wired
Alternate Part Number-1
217545
Product Overview
Electrified Mortise Lock, Fail Secure, Both Levers EU, No Cylinder Override, 12/24VDC, Satin Chrome
The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
