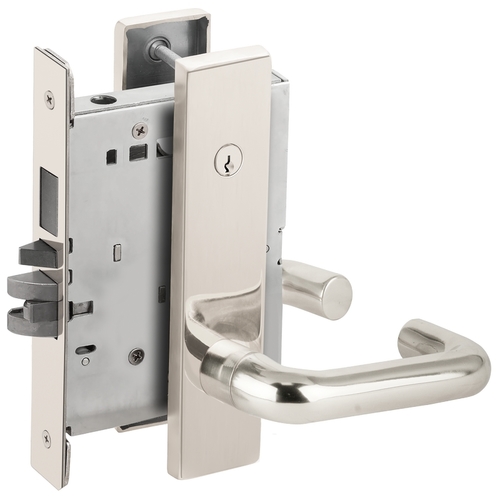

Schlage Commercial L9485C 03L 625 RH Right Hand Faculty Restroom Mortise Lock with Concealed Cylinder with 03 Lever and L Escutcheon Bright Chrome Finish

Item #: L9485C 03L 625 RH by Schlage Commercial

See reviews

$897.43 /each

SAVE UP TO 89.74

Buying in bulk

Roll over image to zoom in

Schlage Commercial L9485C 03L 625 RH Right Hand Faculty Restroom Mortise Lock with Concealed Cylinder with 03 Lever and L Escutcheon Bright Chrome Finish

Item #: L9485C 03L 625 RH by Schlage Commercial

See reviews See reviews

$897.43 /each

SAVE UP TO 89.74

Buying in bulk

Special Order*

Usually ships in 1-2 weeks

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Handing: L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
  • Faculty Restroom, Latchbolt Retracted By Key or Lever, Deadbolt Thrown by Thumbturn, Deadbolt is Thrown All Keys Are Inoperative Except Emergency Key, Turning Inside Retracts Dead and Latchbolt, Auxiliary Latch Deadlocks Latchbolt, Inside is Always Free
  • ANSI/BHMI Certified A156.13-2012
  • Door Thickness: 1 3/4” (44 mm) standard. 1 3/8” (35 mm) to 2 1/2” (64 mm) optional. Over 2 1/2” (64 mm) door ranges vary by function. No escutcheon available for 1 3/4” (44 mm) doors standard. 2” to 2 3/8” (51 mm to 60 mm) optional. Specify door thickness if other than 1 3/4”.
  • Backset: 2-3/4” (70 mm) only.
  • Commercial Grade 1
  • Armored Front: L9000 Series: 1 1/4” x 8” x 7/32” (32 mm x 203 mm x 6 mm) standard. 1 1/16” x 8” x 1 7/32” (27 mm x 203 mm x 6 mm) optional. L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
  • Lock Body Mortises Inside the Edge of the Door
  • UL Listed for 3 Hour Fide Door
  • Case Size: L9000 Series: 4 7/16” x 6 1/16” x 1” (113 mm x 154 mm x 25 mm) L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
  • Spacing: Knob or lever to cylinder, 3 7/8” (98mm); knob or lever to thumbturn hub, 2 11/16” (68mm).
  • Bolts: 1” (25mm) throw stainless steel deadbolt and 3/4” (19mm) throw stainless steel latch with anti-friction tongue.
  • Exposed Trim
  • Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D-Series knobs.
  • Levers: Forged brass or bronze and cast stainless steel. Designs available to match D-Series levers. 93 Lever Design: Extruded brass, bronze or stainless steel.
  • Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
  • Trim Combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
  • Strike: L9000 Series: ANSI curved lip strike 1 1/4” x 4 7/8” (32 mm x 124 mm) x 1 3/16” (30 mm) lip to center with dust box standard. L400-Series: 1 1/8” x 3 5/8” (29 mm x 92 mm) with dust box.
  • Cylinder & Keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
  • Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.

Thickness

1-3/4"

Strike Number

10-072

Package Volume

313.6816406

Case Width

5.375"

Function

Faculty Restroom

Case Qty

6

Hand

RH

Grade

Grade 1

Fire Rated

3 Hours {A}

Special Marks

Fire rated 3 Hours {A}

Key(s)

Cut

Dust Box

Plastic

Strike Width

1-1/4"

Cylinder Type

Concealed Cylinder

Lock Face Size

8" x 1-1/4"

Case Length

10.375"

Package Qty

1

Package Height

5.625"

Screws

Combination

Keying

Keyed Different

Case Height

5.625"

Package Width

5.375"

Bolt Protection

3/4" Latch, 1" Deadbolt

Case Volume

313.6816406

Color Code

625/US26

Strike Type

ASA

Origin

Mexico

BAA Qualified

Yes

Rose/Escutcheon Design

L - Escutcheon

Keyway

S123

Strike Height

4-7/8"

Lever/Knob Design

03 - Lever

Package Length

10.375"

Finish

Bright Chrome

Handing

Right Hand

Strike

ANSI Strike

Design

03 Lever and L Escutcheon

Backset

2-3/4" Backset

Right Hand Faculty Restroom Mortise Lock with Concealed Cylinder with 03 Lever and L Escutcheon Bright Chrome Finish
