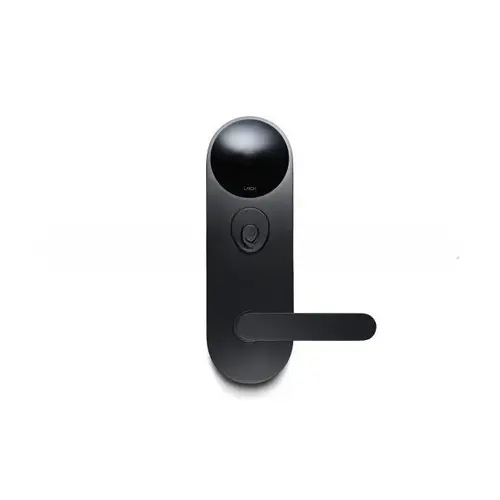

Latch M2LB1LLRH Right Hand Mortise Electronic Lock with Standard Lever for Apartment Entry Doors Black Finish
Item #: M2LB1LLRH by Latch
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Up to 1500 Users
- 135 Degree Camera Image Capture
- Equiped with Bluetooth Low Energy (BLE) and Near Field Communication (NFC)
- 13.56 MHz NFC Frequency MiFare Classic with 1.18" Read Range
- Supported by iOS and Android
Backset
2-3/4" Backset
Handing
Right Hand
Function
Entry
Series
M Series
Finish
Black
Dimension
9-4/5" x 3-1/5" with 2-2/5" Projection on Exterior, 9-4/5" x 3-1/5" with 2-3/4" Projection on Interior
Use With
Entry Doors
Keyway
Schlage C Keyway
Door Thickness
1-3/4"
Fire Rated
90 Minute Fire Rating
Manufacturer Warranty
1 Year Limited Warranty on Electronic Components, 5 Year Limited Warranty on Mechanical Components
Operating Voltage
12 Volt DC, 2.4W
Reader Type
Smartphone, NFC Card, and Doorcode
UL Listing Type
UL 10B (90min), UL 10C (90 min), ULC S104, FCC Part 15 Subpart C, IC RSS-310, IEC 61000-4-2
Power Supply
6 AA Non-Rechangeable Alkaline Batteries Wired Power
Door Range
1-3/4"
Hazardous Material
No
Strike Dimension
1-1/4" x 4-7/8" with 1-1/4" Lip
Finish code
B
Chassis Type
Mortise Chassis
Lever Knob Design
Standard Lever
No of inners
1
Product Overview
Right Hand Mortise Electronic Lock with Standard Lever for Apartment Entry Doors Black Finish
