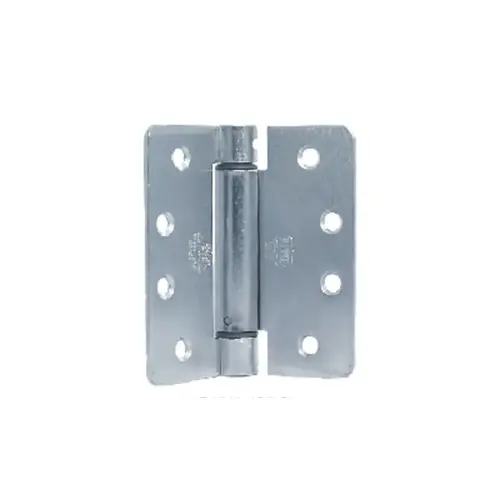

Bommer LB4311-350-652 Lubricated Bearing Single Acting Spring Hinge, Residential Grade Template Hole Patter 1/4 In. Radius, 3-1/2 In. by 3-1/2 In. Satin Chromium
Item #: LB4311-350-652 by Bommer
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Height
3-1/2 In.
Width
3-1/2 In.
Bearing Type
Lubricated Bearing
Screw
Wood/Machine
Package Qty
1
Hinge Type
Hinge, Spring
Color Code
652/US26D
Mounting Style
1/4 In. Radius
Grade
ANSI/BHMA Grade 1
Function
Lubricated Bearing Hinge
Finish Description
Satin Chrome
ADA Compliant
No
Finish Family
Satin Chrome
Hinge Size
3-1/2 x 3-1/2 Inch
Product Material
Steel
Standards
ANSI K81071F; cULus Listed; BHMA Certified Grade 1
Function Family
Hinge/Pivot
Features
ANSI Templated Screw Hole Pattern; Full Mortise
Product Type
Hinge/Pivot
Series
LB4300 Series
Manufacturer Parent
Bommer Industries
Clearance Date
250123-Add
Sub-Series
Bommer-LB4311-350
Product Overview
Lubricated Bearing Single Acting Spring Hinge, Residential Grade Template Hole Patter 1/4 In. Radius, 3-1/2 In. by 3-1/2 In. Satin Chromium
Lubricated bearing 3-1/2 In. by 3-1/2 In. residential grade steel single acting spring hinge with 1/4 In. radius corners and template hole pattern
Bommer Industries offers two basic series of BHMA Certified Architectural Grade Hinges.
