PDL3000 Series Trilogy High Security Proximity Mortise Classroom Audit Trail Digital Lock, Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

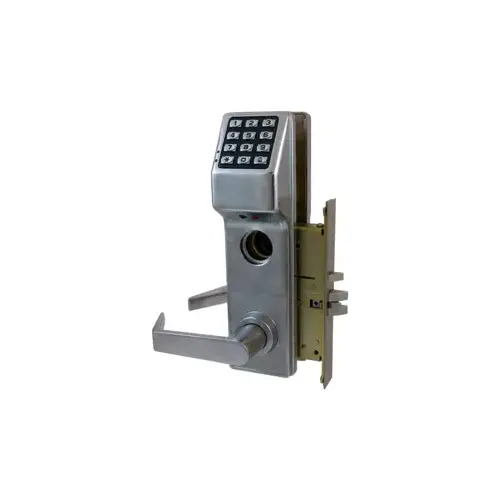

Alarm Lock PDL3500CRL US26D PDL3000 Series Trilogy High Security Proximity Mortise Classroom Audit Trail Digital Lock, Satin Chrome

Item #: PDL3500CRL US26D by Alarm Lock

See reviewsSee reviews
See reviews summary
In Stock

$1,536.24

/each
SAVE UP TO 153.62
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 72 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Retrofits Most Cylindrical Locksets and Digital Locks
  • 300 User codes: Master, manager, supervisor & basic users
  • Multi-Level User Codes and One-Time Service Codes
  • Fingertip or Windows PC-programmable
  • Free Passage, Group or Total Lock-Out Codes
  • Real time clock enables up to 500 scheduled events and holiday schedules
  • 60,000 Cycles Typical Battery Life
  • 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
  • Long-life battery pak for 80,000 cycles, typical and low-battery alert
  • Vandal-Proof All-Metal Keypad
  • Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
  • 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
  • 40,000 event audit trail log
  • 500 scheduled events, e.g., lock or unlock
  • PC programming/reporting
  • Quick passage mode (without being in program mode)
  • Program data transferred to lock via AL-PCI2 or AL-DTMIII
  • 5AA battery-pak operated; 75,000 cycles, typical
  • 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
  • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)

Finish

Satin Chrome

Function

Entry

Series

PDL Series

Design

Proximity Keypad

Handing

Left Hand

Strike

1-1/4" x 4-7/8" Strike

Backset

2-3/4", 2-3/8"

Grade

Grade 1

Power

Battery Pack

Color Code

626/US26D

Door Thickness

1-3/8 In. to 1-7/8 In.

Cylinder Type

Conventional Cylinder

Fire Rated

3 Hours {A}

Package Height

4.875"

Package Length

13"

Package Volume

728.8125

Package Width

11.5"

Number of users

300

Keypad Type

Electronic

Lock Platform

Mortise Latch

Package Qty

1

Programmer

Optional

Reader Technology

125kHz Proximity with Keypad

Software

Optional

Special Marks

Fire rated 3 Hours {A}

Strike Type

Mortise

Base Material

Brass or Bronze

Keyway

Schlage C

Finish Description

Satin Chrome

Keyblank Grouping

SCHL-C-6-1

Product Type

Electronic Mortise Lock

Keying Charges

CCAM

Voltage

5 AA

CAM Type

Standard

Cylinder Included

Yes

Access Type

Keypad, Proximity Reader, Standalone

Alternate Part Number-1

141440

Finish code

US26D

Lock Type

Mortise

Audit Trail

40000 Events

Latch Bolt Throw

3/4in

Height

5

Length

13

Width

11.38

Product Overview
PDL3000 Series Trilogy High Security Proximity Mortise Classroom Audit Trail Digital Lock with Straight Lever, Left Hand, SC1 Keyway, in US26D Satin Chrome
PDL3500 Series – Electronic battery operated digital mortise lock. Holds up to 2,000 user codes, Master, Management, Supervisor and basic user code. 500 event schedule, real time clock and 40,000 event audit trail. Will read most HID card and keyfob formats.


SPECIFICATIONS
  • Door thickness: Fits 1-3/8" to 1-7/8" (4.46cm)
  • Backset: 2-3/4" standard
  • Strike: 1-1/4" x 4-7/8" ASA Strike (included)
  • Handing: Specify RH or LH when ordering, lock is reversible in the field
  • Power: 5 AA Alkaline batteries (included)
  • Keypad: Weatherproof all metal, 12 button. All functions programmed through keypad. Proximity antenna housing molded of ultra high strength, impact resistant Lexan®
  • Door prep: Standard ANSI A115 Mortise prep, modified by adding additional throughbolt holes
  • Compliance: Steelcase lock body meets BHMA specifications for Grade 1 locks. UL Listed, 10C Positive Pressure Specification. FCC Certified. ADA compliant levers
  • Functions: Classroom function features stainless steel latchbolt with 3/4" (1.91cm) projection and deadlocking latch
  • Cylinder: 1-3/8" (3.5cm) mortise cylinder supplied. Will accept 1-1/4" to 1-1/2" (3.5 – 3.82cm) mortise cylinder
  • Cams: Classroom function supplied with straight Cam. Cams for other manufacturer's cylinders are available. See “Mortise Lock accessories" for part numbers and manufacturers

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
