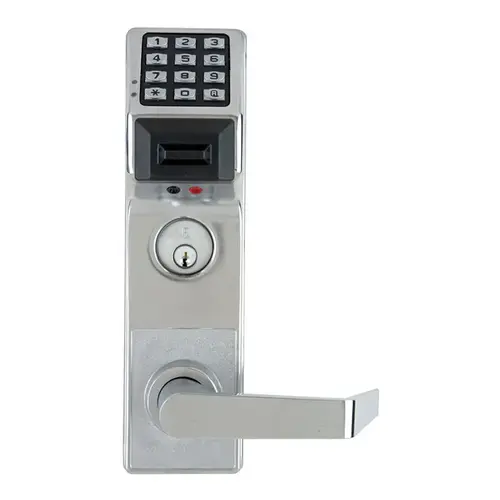

Alarm Lock PDL3500DBL US26D PDL3000 Series Trilogy High Security Proximity Mortise Deadbolt Audit Trail Digital Lock, Satin Chrome
Item #: PDL3500DBL US26D by Alarm Lock
See reviewsSee reviews
HURRY! Low in stock
$1,675.36
/eachSAVE UP TO 167.54
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Retrofits Most Cylindrical Locksets and Digital Locks
- 300 User codes: Master, manager, supervisor & basic users
- Multi-Level User Codes and One-Time Service Codes
- Fingertip or Windows PC-programmable
- Free Passage, Group or Total Lock-Out Codes
- Real time clock enables up to 500 scheduled events and holiday schedules
- 60,000 Cycles Typical Battery Life
- 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
- Long-life battery pak for 80,000 cycles, typical and low-battery alert
- Vandal-Proof All-Metal Keypad
- Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
- 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
- 40,000 event audit trail log
- 500 scheduled events, e.g., lock or unlock
- PC programming/reporting
- Quick passage mode (without being in program mode)
- Program data transferred to lock via AL-PCI2 or AL-DTMIII
- 5AA battery-pak operated; 75,000 cycles, typical
- 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
- Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
Finish
Satin Chrome
Function
Digital Lock
Series
PDL Series
Design
Proximity Keypad
Handing
LH
Strike
1-1/4" x 4-7/8" Strike
Backset
2-3/4 Inch
Grade
ANSI/BHMA Grade 1
Power
Battery Pack
Color Code
626/US26D
Door Thickness
1-5/8 to 1-7/8 Inch
Cylinder Type
Conventional
Fire Rated
3 Hours {A}
Package Height
4.875"
Package Length
13"
Package Volume
728.8125
Package Width
11.5"
Number of users
300
Keypad Type
Electronic
Lock Platform
Mortise Deadbolt
Package Qty
1
Programmer
Optional
Reader Technology
125kHz Proximity with Keypad
Software
Optional
Special Marks
Fire rated 3 Hours {A}
Strike Type
Mortise
Base Material
Brass or Bronze
Keyway
Schlage C
Finish Description
Satin Chrome
Keyblank Grouping
SCHL-C-6-1
Product Type
Exit Device Trim
Keying Charges
CCAM
Hand
Left Hand
Warranty
1 Year
Operating Temperature
-31 to 151°F
Latch Throw
1/2 Inch
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
(5) AA Alkaline Battery; Strike
Strike Size
4-7/8" x 1-1/4"
Standards
ANSI A115; BHMA Specification for Grade 1; UL Listed 10C Positive Pressure; FCC Certified; 3 Hr Fire Rated UL
Product Projection
3/4 (Latch Bolt); 1 (Deadbolt) Inch; Inch
Features
2000 User Codes (3-6 digits) and/or HID Proxy Cards/Fobs; 500 Scheduled Events; Multilevel Security; PC Programming/Reporting; Quick Passage Mode; Program Data Transferred to Lock via AL-PCI2 or AL-DTMIII; 5AA Battery Pak Operated; 75,000 Cycles
Manufacturer Parent
Napco Security Technologies
Latchbolt Type
Stainless Steel Latch Bolt
Sub-Series
PDL3500DBL-26D
Alternate Part Number-1
189591
Product Overview
PDL3000Trilogy T3 Proximity Cylindrical Audit Trail Digital Lock
Electronic battery operated digital proximity lock. Holds up to 2000 codes, Master, Management, Supervisor & basic user. Multiple "one-time" user codes. 500 event schedule, real time clock & 40,000 event audit trail. Will read most HID card and keyfob formats.
Features:- Use the same ID cards as hardwired access systems & install in an hour
- Save all the downtime and 1/2 the cost of hardwired system
- Provide access for up to 2000 users, with prox ID-cards or 3 to 6 digit codes including: Master, manager, supervisor and basic user. Users are individually programmed to use a card only, code only, or, for the highest security, both card and code.
- Built-in HID Prox reader for entry with HID125KZ prox ID cards and keyfob credentials
- Grade 1 BHMA Certified durability and rugged clutch mechanism ensure long dependable life
- Weatherproof performance for indoor and outdoor applications, wide operating temperature range of -31°F to +151°F (-35°C to +66°C)
- Electronic master key system with access customized to each user’s hours - Give each user access to common areas and/or their individual area(s) and do so defined by the actual times they are permitted entry there
- Tap and Add batch ID card enrollment mode at lock or download from a PC
- 40,000 event audit trail; 500 scheduled events
- PC programming/reporting
- Quick passage mode
- 5AA battery operation; 60,000 cycles, typical
- Fits 1 5/8" to 1 7/8"
- 2 3/4" (2 3/8" also available)
- 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included
- UL Listed, fire rated 3 hours, 1/2" throw, reversible
- Non-handed
- 5 AA alkaline batteries (included)
- All metal, 12 button. All functions programmed through keypad
- Standard ANSI A115 Series prep, modified by adding additional through-bolt holes
- BHMA Certified Grade 1 heavy duty cylindrical lockset UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers
- 6 pin solid brass. SCY1 keyway furnished with all key override locks Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can be used with the HW620 tailpiece (supplied)
- Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale and Corbin-Russwin IC core models prepped for 6 pin Medeco, Sargent, and Schlage
- 10B - Oil Rubbed Bronze
- 26D - Satin Chrome
