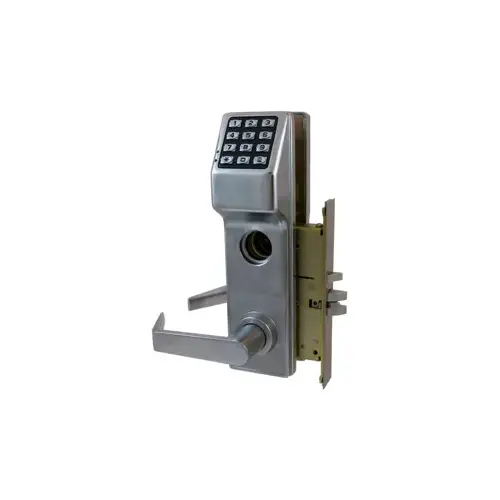

Alarm Lock DL2700CRL26D DL2700 Series Trilogy T2 Mortise Classroom Electronic Digital Lock, Satin Chrome

Item #: DL2700CRL26D by Alarm Lock

See reviewsSee reviews
See reviews summary
In Stock

$995.70

/each
SAVE UP TO 99.57
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 71 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Constructed from Solid Steel
  • Reversible Handing
  • Multi-Level User Codes and One-Time Service Codes
  • Free Passage, Group or Total Lock-Out Codes
  • Typical 150,000 Cycle Battery Life

Finish

Satin Chrome

Function

DL27-Standard Key Override

Series

DL2 Series

Design

Digital Keypad

Strike

ANSI & T-Strike

Backset

2-3/4 Inch

Keyway

Schlage C

Cylinder Type

Mortise

Finish Description

Satin Chrome

Lever Style

Straight

Keyblank Grouping

SCHL-C-6-1

Product Type

Electronic Cylindrical Lock

Keying Charges

CCAM

Color

Satin Chrome

Color Code

626/US26D

Strike Size

1-1/8" x 2-3/4"; 1-1/4" x 4-7/8"

Power Source

5 AA Batteries

Manufacturer Parent

Napco Security Technologies

Handing

LH

Latch Throw

1/2 Inch

Function Description

Clutch Mechanism Permits Turning Lever Without Retracting Latch, Reduces Stress on Lock Bodies and Spindle. Outside Lever Free Turning in Locked. Entering Access Code/Key Bypass/Remote Bypass Allow Lever to Retract Latch. Inside Lever Instant Egress

Hand

Left Hand

Grade

ANSI/BHMA Grade 1

Sub-Series

DL2700CRL-26D

ADA Compliant

YES

Front Size

1-1/8" x 2-1/4"

Operating Temperature

-31 to 151°F

Application

Schools; Healthcare; Pharmacies; Rental Properties; Offices; Retail; Airports

Function Family

Digital Lock

Standards

BHMA Certified; UL Listed; FCC Certified

Door Thickness

1-5/8 to 1-7/8 Inch

Features

Weatherproof; Standard ANSI 161 Series Prep; Vandal-Proof All Metal Keypad; 100 Different Multi-Level User Codes: Master, 10 Managers, 90 Users, 3 Service Codes; Battery At 200000 Cycles; 2-Wire Remote Override; Programmable Relay

Strike Type

ASA; T Strike

Warranty

2 Year

Included Components

(5) AA Alkaline Batteries; Screws for Wood/Metal Jambs

Finish Family

Satin Chrome

Alternate Part Number-1

157152

Dimension

3-1/4" x 8-1/4"

Use With

Electric Lockset

Material

Zinc Alloy

Fire Rated

Yes

Manufacturer Warranty

Limited 2 Year Warranty

UL Listing Type

UL10C

Power Supply

5 AA Batteries

Hazardous Material

No

Strike Dimension

1-1/8" x 2-3/4" T-Strike, 1-1/4" x 4-7/8" ASA Strike

Cross Bore Size

2-1/8" Bore with additional through-bolt holes

Finish code

US26D

Latch Faceplate Dimension

1-1/8" x 2-1/4"

Chassis Type

Mortise Chassis

No of inners

1

Product Overview
DL2700Trilogy Electronic Digital Locks

Electronic battery operated digital lock. Holds up to 100 user codes, 1 Master, 10 Manager codes & up to 3 one time user codes.

Features:
  • More codes: up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one time service codes.
  • Uses 5 AA batteries; 5 years battery life or 200,000 cycles, typ.
  • For outdoors, specify WP weatherproof models -31 ̊ to +151 ̊F (-35 ̊ to +66 ̊C)
Specifications: Door Thickness:
  • Fits 1 5/8" to 1 7/8"
Backset:
  • 2 3/4" (2 3/8" also available)
Strike:
  • 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included
Latch bolt:
  • UL Listed, fire rated 3 hours, 1/2" throw, reversible
Handing:
  • Non-handed
Power:
  • 5 AA alkaline batteries (included)
Keypad:
  • All metal, 12 button. All functions programmed through keypad
Door Prep:
  • Standard ANSI A115 Series prep, modified by adding additional through-bolt holes
Compliances:
  • BHMA Certified Grade 1 heavy duty cylindrical lockset UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers
Cylinder:
  • 6 pin solid brass. SCY1 keyway furnished with all key override lock Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can he used with the HW620 tailpiece (supplied)
Interchangeable Core Models:
  • Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale and Corbin-Russwin IC core models prepped for 6 pin Medeco, Sargent, and Schlage
Finsihes:
  • 10B - Oil Rubbed Dark Bronze
  • 26D - Satin Chrome
