30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- 100% Grade 316 stainless steel deck unit
- IP67 rated housing is completely submersible
- Fall Safe anchor lock prevents accidental deployment
- Fast line speed, typically 50 feet per minute, maximum 82 feet per minute
- Manual recovery
- Impact-resistant motor cover
- Gypsy Number: 603
- Rope: 12 mm (1/2") 3 Strand and 8 Plait
- Chain: 6mm DIN 766, 6 mm ISO 4565, 7 mm DIN 766, 1/4" ACCO ISO G43 (G4), 1/4" ACCO BBB (3B)
- Motor Power: 320W
- Style: Vertical
- Boat Length: To 35'
- Rode Type: Rope/chain
- Maximum Pull: 700lb.
- Case Material: 316 stainless steel
- Capstan/Gypsy Material: Stainless steel
- Warranty: Five years
Diameter
6mm Chain , 1/2" Line
Material
Stainless Steel
Dimensions
Above Deck: 5" Width x 2 3/4" Height x 7 3/4" Length
Style
Vertical
Type
Rope and Chain Rode
Amperage
40 AMPS
Maximum Pull
700 Pounds
Anchoring Speed
Power Down 82 Feet per Minute
Maximum Boat Length
35 Feet
Minimum Boat Length
20 Feet
Retrieval Speed
50' per Minute at 175 Pounds
Product Overview

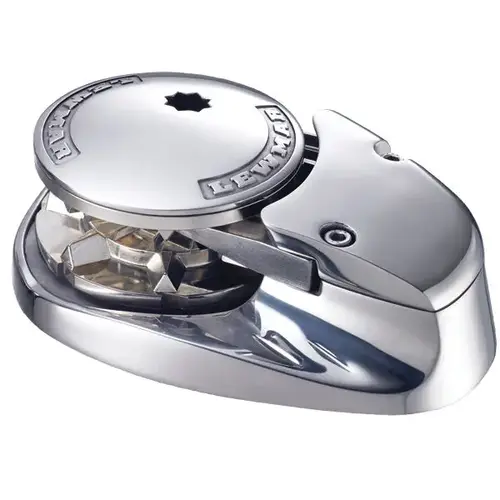

Fast line speeds, FallSafe" gypsy lock and an emergency manual deployment option. With 100% 316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses. It works at the push of a button. The low-profile deck unit is fitted with a heavy-duty control arm and stripper. Noteworthy is the FallSafe" gypsy lock that prevents accidental deployment while under way. Rated IP67 (waterproof to one meter), it includes an impact-resistant motor cover, solenoid and reed switch magnet fitted as standard for chain counter. For powerboats and sailboats.
