4 Out Lock Distribution Module Class 2

Roll over image to zoom in

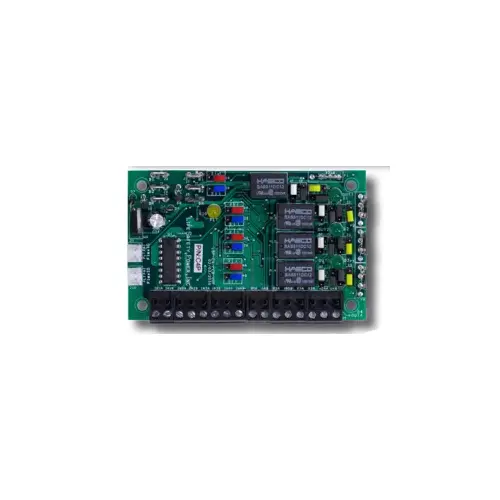

Life Safety Power C4P 4 Out Lock Distribution Module Class 2

Item #: C4P by Life Safety Power

See reviews See reviews

$92.43 /each

SAVE UP TO 9.24

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Alternate Part Number-1

170042

Lifesafety Power Inc 4 Out Lock Distribution Module Class 2

The FlexPower C4, C8 lock controller modules add either 4 or 8 lock control outputs to a FlexPower power supply and are typically supplied as part of a system or purchased as an expansion piece to an existing system. Each module provides either 4 or 8 access control inputs capable of voltage or dry contact activation.



SPECIFICATIONS

  • Lock Outputs - 4 / 8
  • Access Control Inputs - 4 / 8
  • Input Voltage - 12 and/or 24 VDC
  • Input Current - 20 Amps max
  • Output Voltage (Jumper Select) - 12/24 VDC
  • Output Current C4P - Class II at 2.5A per output
  • Fire Alarm Interface - Per Output
  • Supports follow on modules - Yes
  • Size - 4in x 2.5in x 1.5in
  • Weight - .50 lb.
